High Load Beehive® Spring Kit

€762.55
Tax included
FEULING Beehive valve springs made from high-strength chrome-silicon, shot-peened and Super NexTex treated. Small-diameter spring seats and lightweight retainers for faster revving, improved stability, and reduced noise. Drop-in replacement up to 0.565 in. lift; over 0.600 in. with machining. Complete kit includes titanium retainers, seats, shims, valve locks (keepers), and Viton valve stem seals.
Quantity
Last items in stock

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Made from ultra high-strength conical-oval chrome-silicon wire, then shot-peened, heat-treated, and finished with Super NexTex® to deliver the longevity demanded by V‑Twin engines, whether stock or performance-built.
  • FEULING® BEEHIVE® valve springs use a more compact, lightweight retainer, dramatically reducing mass on the valve side for faster revs and smoother operation than conventional single or dual springs.
  • Direct replacement valve springs: no spring seat or rocker cover modifications required up to 0.565" lift.
  • Compatible with camshafts providing more than 0.600" lift, provided the spring seat pocket in the head is machined to achieve the correct open height.
  • Smaller, lighter retainers significantly reduce moving mass for quicker revs and more consistent motion than traditional dual or single springs.
  • Design eliminates spring separation, optimizing stability and reducing valvetrain noise and vibration.

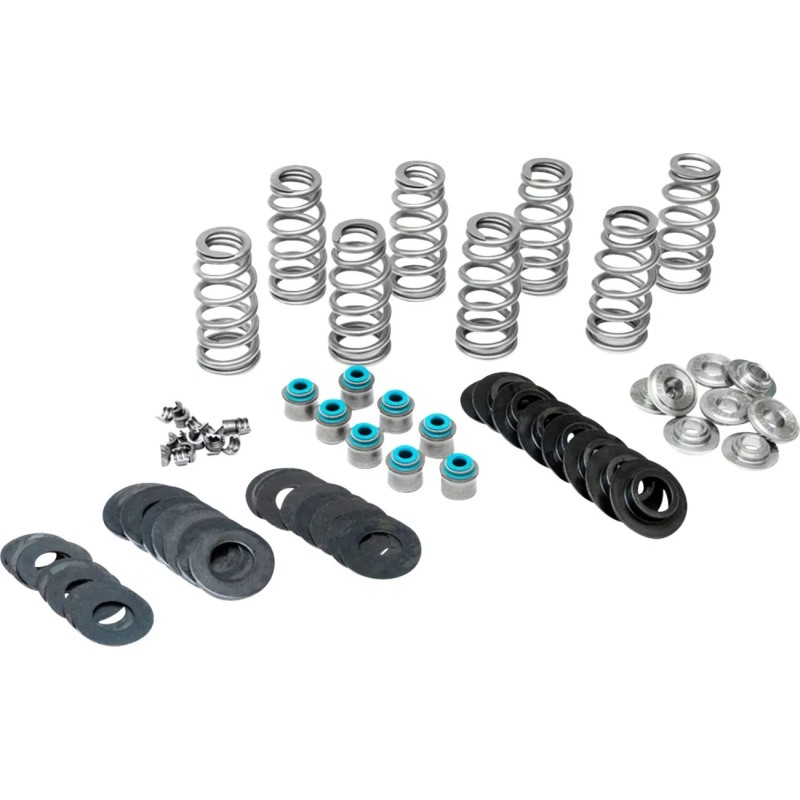

  • Kit includes: a matched set of Feuling® High Load Beehive® valve springs, titanium retainers, machined seats, seat shims, valve locks (keepers), and a set of premium Viton® valve stem seals with spring-loaded stem wiper.
  • Seat load / installed height
  • 151 lb at 1.475" (0.485" lift)
  • 144 lb at 1.498" (0.508" lift)
  • 143 lb at 1.501" (0.511" lift)
  • 140 lb at 1.511" (0.521" lift)
  • 124 lb at 1.562" (0.578" lift)
  • 120 lb at 1.582" (0.592" lift)
  • 304 lb at 0.990" open height
  • Coil bind at 0.945"
  • Recommended for camshafts with +0.540" lift
  • Feuling® BeeHive® valve springs must be installed at the correct open height, consistent with maximum lift and spring specifications.
  • Made in the USA
  • Recommended only for high-lift camshafts and competition engines; improper setup may cause excessive rocker arm flex.
  • EU: Direct-fit valve spring installation, no spring seat or rocker cover modification up to 1.435 cm lift.
  • EU: Accept more than 1.524 cm cam lift, but require machining the spring seat pocket in the cylinder head to achieve the correct open height.
  • EU: 68.49 kg at 3.747 cm (1.232 cm lift)
  • EU: 65.32 kg at 3.805 cm (1.290 cm lift)
  • EU: 64.86 kg at 3.813 cm (1.298 cm lift)
  • EU: 63.50 kg at 3.838 cm (1.323 cm lift)
  • EU: 56.25 kg at 3.968 cm (1.468 cm lift)
  • EU: 54.43 kg at 4.018 cm (1.504 cm lift)
  • EU: 137.89 kg at 2.515 cm open height
  • EU: Coil bind at 2.400 cm
  • EU: Recommended for camshafts with +1.372 cm lift
FEULING PARTS
09263138
2 Items

Data sheet

Style
Ressort arrondi Beehive®
Marque
FEULING PARTS
Référence fournisseur
1207
Modèle
High-Load Beehive
Nom du produit
Kit ressorts
Type
Soupape
Unités
Kit
