• New
7-Speed Transmission Gear Set
search
  • 7-Speed Transmission Gear Set

7-Speed Transmission Gear Set

€4,595.27
Tax included
Direct replacement of the 6‑speed Cruise Drive with a 7th gear to harness the torque of 96, 103 and 110 cu in engines. Lightened shaft to reduce noise, shortened first gear and close‑ratio gearing for smooth acceleration from 1st through 4th, linear ball‑detent mechanism in a machined cover. Direct‑fit installation with no modifications required; complete kit includes 6061‑T6 aluminum housing, widened bearings, ARP bolts, Baker re‑cal box and cables. Made in the USA.
Quantity
Last items in stock

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Direct replacement for the 6-speed Cruise Drive transmission for Harley‑Davidson, designed to install in place of the original unit.
  • Adds a 7th gear that allows full use of the torque and power of 96 ci, 103 ci and 110 ci engines thanks to optimized transmission ratio management.
  • Unlike the original main shaft that houses 1st through 4th gears, the DD7 is lightened and contains only the small 1st gear, reducing noise during shifts.
  • Shortened 1st gear and closer ratios for smoother, more powerful riding, with continuous and consistent acceleration from 1st to 4th gear.
  • Shifting is softened by a new linear ball mechanism integrated into the machined upper cover supplied with the kit.
  • Ready to be mounted on the motorcycle without modifying the transmission case or the need to adjust the entire gearset.
  • The 7th main gear, the associated bearing and the main seal are provided to replace the original 6th gear.

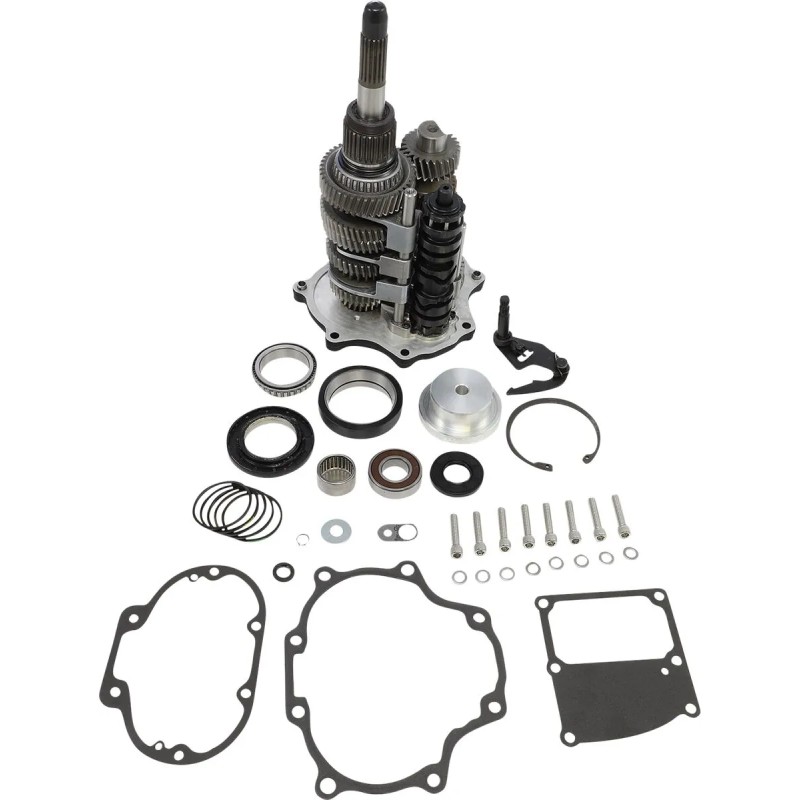

  • The kit also includes the new main gear bearing and seal, a polished bearing carrier, carrier gasket, side cover gasket, upper cover gasket and a DD7 sticker for the side cover.
  • Bearing carrier machined from 6061‑T6 aluminum, equipped with widened bearings and retaining plates that replace the original circlips for improved robustness.
  • Included: 12‑point ARP bolts for the carrier, the upper cover and the original side cover; the Baker Re‑Cal box and required cables are included.
  • The DD7 carrier bearings offer a 28% greater width compared to the original bearings, enhancing durability and stability.
  • Uses the F6F bearing carrier retaining plate reference for assembly.
  • The original shift selector arm is reused, avoiding replacement of that part.
  • Product manufactured in the United States, meeting high manufacturing quality standards.
BAKER DRIVETRAIN
11030051
1 Item

Data sheet

Type de transmission
7 vitesses
Rapport 6e vitesse
1,10:1
Rapport 2e vitesse
2,75:1
Rapport 3e vitesse
2,06:1
Rapport 4e vitesse
1,55:1
Rapport 5e vitesse
1,27:1
Rapport 1re vitesse
3,76:1
Rapport 7e vitesse
1,00:1
Marque
BAKER DRIVETRAIN
Référence fournisseur
DD7-M802
Couleur/finition
Polished
Nom du produit
Lot d'engrenages
Type
Transmission
Unités
Kit
