HP+® Oil System Packs for M8

€1,348.27
€1,213.44 Save 10%
Tax included
FUELING® High Flow kit including a 7075 aluminum machined cam plate and a machined oil pump: increases oil flow and volume, aligns ports for improved lubrication (up to +42% scavenging, +68% to the crankshaft), raises oil pressure (10–30 psi), reduces temperatures and wet‑sumping, bench‑tested and supplied complete, made in the USA.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Includes a FUELING® High Flow cam plate machined from 7075 aluminum: a material 50% harder and stronger than stock or FUELING® OE+ plates.
  • Improves oil flow and volume by enlarging the pump reservoirs and widening critical passages, precisely aligning the cam plate ports with those in the crankcase to optimize lubrication of the lifters, piston cooling jets, the crankshaft and rod bearings.
  • FUELING® oil pumps bench-tested: the relief valve is leak-tight to at least 30 psi and fully opens between 55 and 60 psi.
  • Increased oil volume thanks to larger gears and correctly sized passages, combined with a relief valve seat and seal designed to ensure proper operation of the lubrication circuit.
  • The cam plate + FUELING® oil pump combination corrects common pressure and suction issues encountered with stock lubrication systems.
  • FUELING® oil pumps for M‑Eight engines feature a machined groove in the rear cover to accept the original crankshaft seal.
  • Quieter, smoother engine operation.
  • Increased oil pressure, scavenge volume and engine oil flow.
  • Up to 42% more scavenge volume thanks to passages and ports matched to the engine crankcase.
  • Approximately 68% more oil volume directed to the crankshaft and connecting rods.
  • Typical engine temperature reduction of 15° to 25°.
  • Typical oil temperature reduction of 15° to 30°.
  • Oil pressure gain on the order of 10 to 30 psi.
  • Reduction in wet sumping, blow-by and oil-fouled air filters.
  • Tests indicate a measured gain of approximately 2 hp and 2 ft·lb of rear-wheel torque on M‑Eight engines.

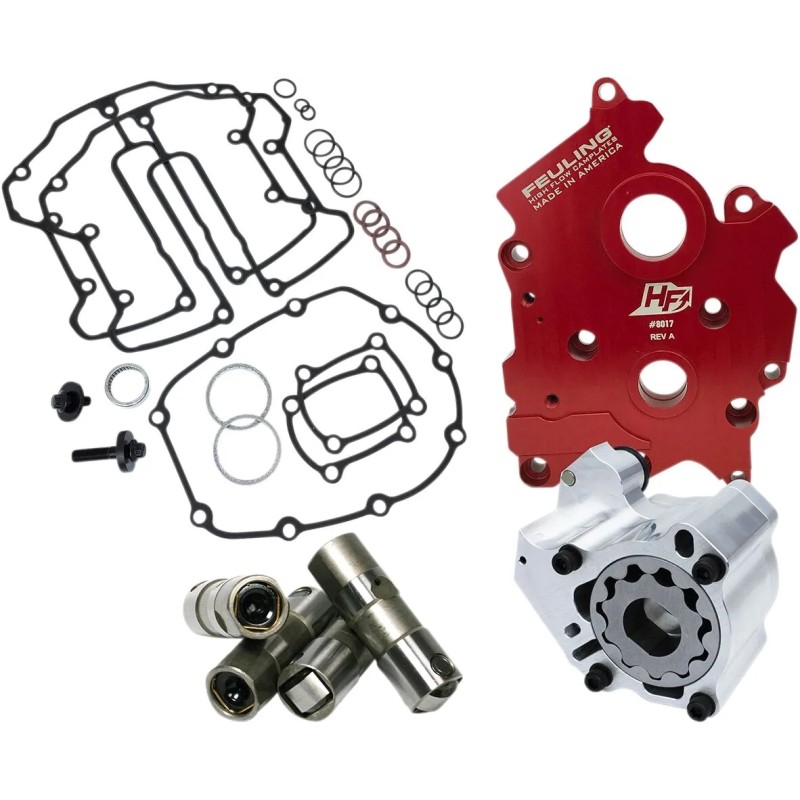

  • The kit includes: high-flow oil pump machined from 6061 aluminum, High Flow cam plate, HP+® hydraulic roller lifters, camshaft installation kit, camshaft bearing, camshaft/crankshaft bolts and washers, engine assembly grease and all necessary fasteners.
  • Manufacture: product made in the United States.
  • Optional FUELING® X ARP bolt kit for the High Flow cam plate REF. #0932-0192 and for the HP+ or RS oil pump — see REF. #2401-0993.
  • The optional ARP bolts for the oil pump (REF. #2401-0993) do not require the use of washers.
  • FUELING® tests show up to a 50% reduction in oil level in the engine crankcase.
  • For M‑Eight engines: check clearance between the front exhaust lifter and the camshaft flange before installation.
FEULING PARTS
09320198
14 Items

Data sheet

Style
Distribution par chaîne, Distribution pignon
Marque
FEULING PARTS
Référence fournisseur
7096
Caractéristiques
Oil Cooled
Couleur/finition
Red
Modèle
HP+®
Nom du produit
Kit pompe
Type
Système d'huile
Unités
Kit
Matière
Aluminium
