Race Series® Oil System Packs For M8

€1,786.19
€1,607.57 Save 10%
Tax included
FUELING® kit with High Flow 7075 aluminum cam plate (50% harder) and tested oil pump: increases oil flow, volume and pressure for improved lubrication of lifters, piston jets, crankshaft and connecting rods; reduces operating temperatures and noise. Includes Race Series® pump, lifters and installation kit. Made in the USA.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Includes a FUELING® High Flow cam plate machined from 7075 billet aluminum, 50% harder and stronger than the factory piece or the FUELING® OE+ plate
  • Increases oil flow and volume by enlarging the pump reservoirs and critical passages, and by aligning the oil ports of the cam plate with those of the engine case for improved lubrication of lifters, piston cooling jets, the crankshaft and connecting rod bearings
  • FUELING® oil pumps are dyno-tested; the relief valve is sealed at a minimum of 30 psi and opens fully between 55 and 60 psi
  • Increased oil volume is achieved through larger gears, matched passages, and an optimized relief valve seat and seal, ensuring proper operation of the lubrication circuit
  • The FUELING® oil pump + cam plate combination corrects common pressure and scavenging issues found in stock lubrication systems
  • FUELING® M-Eight oil pumps are machined with a groove on the rear cover to accept the original crankshaft seal
  • Quieter, smoother engine operation
  • Increased oil pressure, engine oil volume and oil flow
  • 42% more suction volume thanks to passages and ports matched to the engine case
  • 68% more oil volume directed to the crankshaft and connecting rod
  • Engine temperatures reduced by 15° to 25°
  • Oil temperatures reduced by 15° to 30°
  • An additional 10 to 30 psi of oil pressure
  • The M-Eight Water-Cooled™ oil pump offers 30% more pressure gear volume and 53% more scavenge gear volume compared to stock
  • The M-Eight Oil-Cooled™ engine pump provides 27% more gear pressure and gear volume than stock
  • Reduces oil leaks and eliminates greasy, clogged air filters
  • Tests showing performance gains: +2 hp and +2 ft./lb. of torque at the rear wheel on M-Eight engines

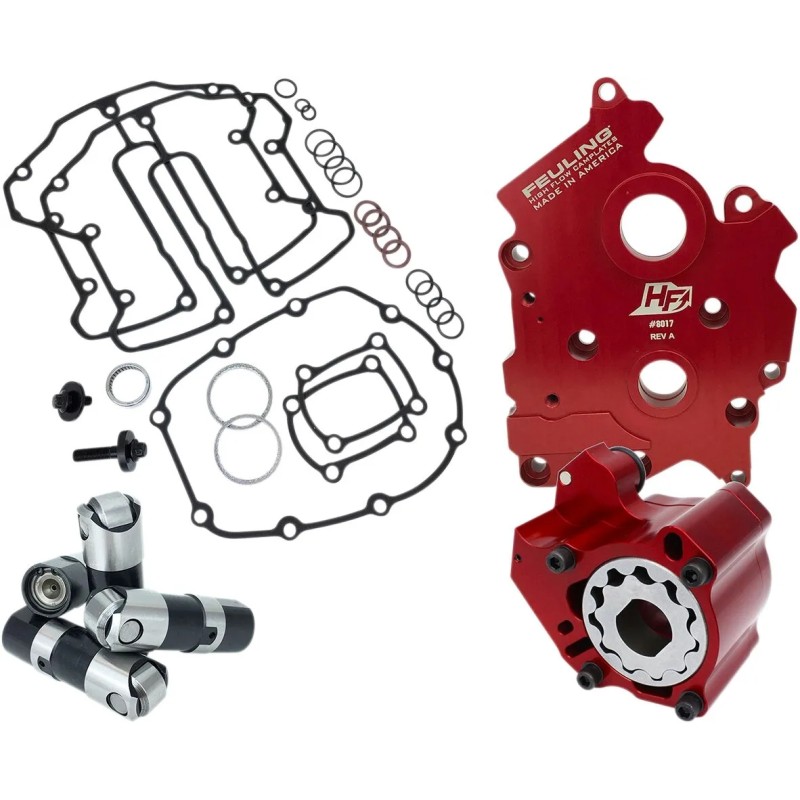

  • Kit includes: Race Series® oil pump, Race Series® hydraulic lifters (full-travel or short-travel), High Flow cam plate, installation kit, cam bearing, cam/crank bolts and washers, engine assembly grease and fasteners
  • The 7075 billet aluminum oil pump is 50% harder and stronger than the factory pump, offering improved tolerances at high temperatures
  • Race Series® oil pumps offer a larger suction port volume than HP+ pumps
  • Race Series® full-travel (.200") hydraulic lifters are engineered with a slower bleed rate to support high valve spring pressures, raise the rpm at which valve float occurs, and provide increased clearance for steep-ramp cams as well as the M-Eight front exhaust cam flange
  • Race Series® short-travel (.115") hydraulic lifters increase engine revving by reducing valve float and vibration while maintaining quiet operation
  • Reduced travel decreases the amount of oil contained in the lifter, limiting oil aeration on high-lift, fast-acting cams
  • Made in the USA
  • Optional FUELING® X ARP bolt kit available for the High Flow cam plate REF. #0932-0192 and for the HP+ or RS oil pump combo — see REF. #2401-0993; optional ARP bolts for the pump do not require washers
  • FUELING® tests show up to a 50% reduction in oil level in the engine case
  • On M-Eight engines, check the clearance between the front exhaust lifter and the camshaft flange
FEULING PARTS
09320199
4 Items

Data sheet

Style
Distribution par chaîne, Distribution pignon
Marque
FEULING PARTS
Référence fournisseur
7097
Caractéristiques
Inclut des poussoirs hydrauliques à course complète, Oil Cooled
Couleur/finition
Red
Modèle
Race Series®
Nom du produit
Kit pompe
Type
Système d'huile
Unités
Kit
Matière
Aluminium
