Race Series Oil System Packs For M8
search
  • Race Series Oil System Packs For M8

Race Series® Oil System Packs For M8

€1,786.19
€1,607.57 Save 10%
Tax included
FUELING kit with a 7075 aluminum High-Flow plate and Race Series pump: increases oil pressure, volume and flow to lifters, piston squirters, crankshaft and connecting rods. Bench-tested to reduce engine and oil temperatures and to improve lubrication, reliability and smoothness of operation. Made in the USA.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Includes a FUELING® High Flow cam plate machined from 7075 aluminum, offering 50% greater hardness and strength compared to stock or FUELING® OE+ plates
  • Increases oil flow and volume by enlarging the pump reservoirs and critical passages, while aligning the cam plate oil ports with those in the engine case for optimized lubrication of lifters, piston cooling jets, the crankshaft, and connecting rod bearings
  • FUELING® oil pumps bench-tested: relief valve sealed at a minimum of 30 psi and full opening between 55 and 60 psi
  • Increased oil volume thanks to larger gears, adapted passages, and a revised relief valve seat/seal to ensure proper lubrication system operation
  • The FUELING® cam plate + oil pump combination corrects common pressure and pick-up issues found on stock systems
  • FUELING® M‑Eight oil pumps feature a machined groove on the rear cover to accept the stock crankshaft seal
  • Smoother and quieter engine operation
  • Increased oil pressure, oil volume, and engine oil flow
  • 42% increase in intake volume thanks to passages and ports matched to the engine case
  • 68% increase in oil volume delivered to the crankshaft and connecting rod
  • Engine temperatures reduced by approximately 15° to 25°
  • Oil temperatures reduced by approximately 15° to 30°
  • Oil pressure gain of an additional 10 to 30 psi
  • The M‑Eight Water‑Cooled™ oil pump delivers 30% more pressure gear volume and 53% more pickup gear volume compared to stock
  • The M‑Eight Oil‑Cooled™ engine pump offers 27% more pressure and gear volume versus stock equipment
  • Helps eliminate oil leaks as well as greasy, clogged air filters
  • FUELING® testing shows performance gains: +2 hp and +2 ft·lb rear-wheel torque on the M‑Eight

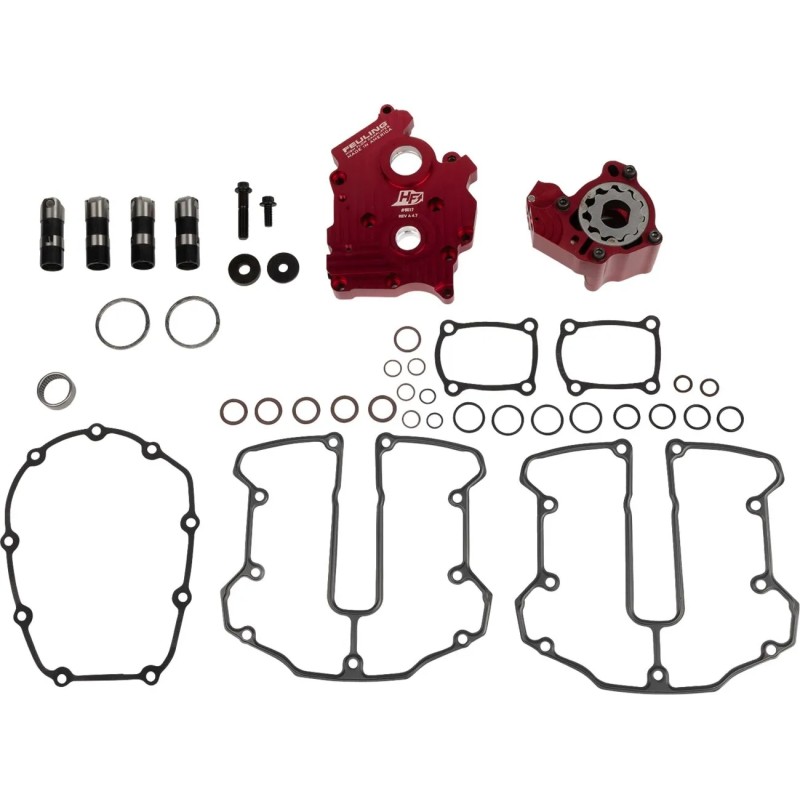

  • Kit includes: a Race Series® oil pump, Race Series® hydraulic lifters (full or short stroke), a High Flow cam plate with installation kit, cam bearing, cam/crank bolts and washers, engine assembly grease, and necessary fasteners
  • The billet 7075 aluminum oil pump is 50% harder and tougher than the stock pump, providing improved high-temperature tolerance
  • Race Series® oil pumps provide a larger pickup port volume than HP+ pumps
  • Race Series® full-stroke (.200") hydraulic lifters are engineered with a slower bleed rate to support heavily loaded valve springs, raise the rpm at which valve float occurs, and provide increased clearance for steep ramp cams and the M‑Eight front exhaust cam boss
  • Race Series® short-stroke (.115") hydraulic lifters help increase engine rpm by reducing valve float and vibration while maintaining quiet operation
  • The reduced stroke limits the amount of oil contained in the lifter, thereby reducing oil aeration on high-lift, fast-acting cams
  • Made in the USA
  • Optional FUELING® X ARP bolt kit available for the High Flow cam plate REF. #0932‑0192 and for the HP+ or RS oil pump combination — see REF. #2401‑0993; the optional ARP bolts for the oil pump do not require washers
  • FUELING® testing shows up to a 50% reduction in oil level in the engine crankcase
  • On M‑Eight engines, check clearance between the front exhaust lifter and the camshaft boss
FEULING PARTS
09320293
6 Items

Data sheet

Style
Distribution par chaîne, Distribution pignon
Marque
FEULING PARTS
Référence fournisseur
7097ST
Caractéristiques
Inclut des poussoirs hydrauliques à course courte, Oil Cooled
Couleur/finition
Red
Modèle
Race Series®
Nom du produit
Kit pompe
Type
Système d'huile
Unités
Kit
Matière
Aluminium
