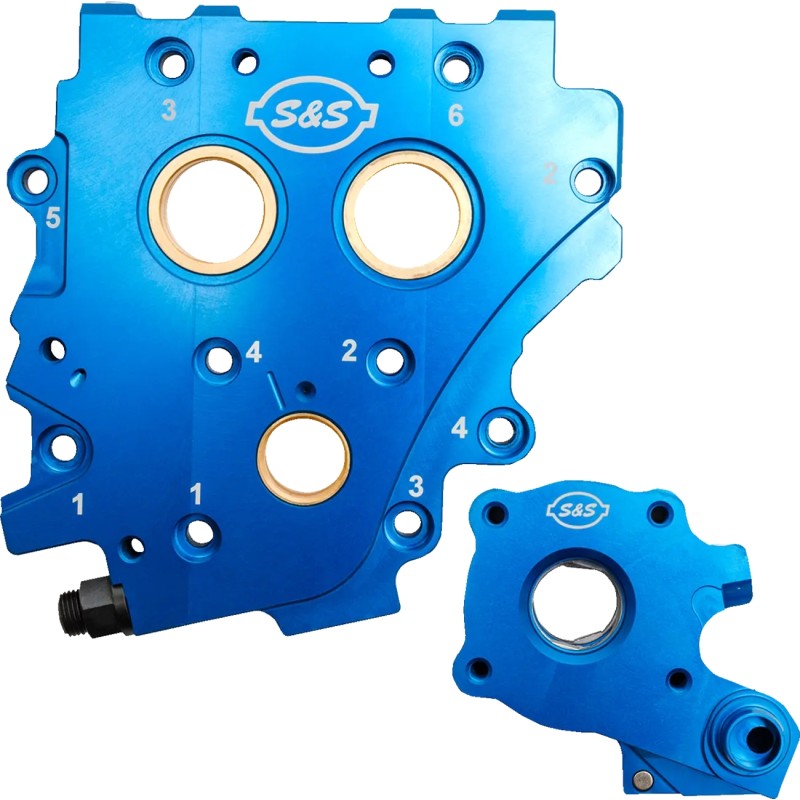

TC3 Oil Pump and Cam Support Plate Kit
search
  • TC3 Oil Pump and Cam Support Plate Kit
  • TC3 Oil Pump and Cam Support Plate Kit

TC3 Oil Pump and Cam Support Plate Kit

€964.25
Tax included
CNC‑machined forged aluminum oil pump and cam plate, robust and porosity‑free. Dual, independent scavenge for the flywheel cavity and cam chest, with a magnetic trap and runout‑tolerant rotors protected from debris. Easy servicing via removable plugs. Bronze bushings, externally adjustable pressure regulator. ’99–’06 plate for hydraulic tensioners. Made in the USA.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Forged aluminum body, CNC precision-machined for tight tolerances
  • Superior structural strength
  • Excellent dimensional stability
  • Material free of internal porosity
  • Separate scavenge circuits for the flywheel cavity and the cam chest, each area scavenged efficiently without interference
  • Gerotors designed to tolerate greater pinion shaft runout without damage
  • The cam chest housing incorporates a magnetic trap to protect the scavenge rotors from metallic debris
  • Protects both scavenge rotors from debris, a major cause of failure in stock oil pumps
  • Removable passage plugs for easy maintenance
  • Bronze pinion bushing on all models, and replaceable bronze camshaft bushings on 2007–2015 versions
  • Adjustable oil pressure regulator, with adjustment possible without removing the engine plate
  • The 1999–2006 cam support plate is designed for modern hydraulic tensioners, as the original spring tensioners from those years do not adequately control the valvetrain at high RPM, especially with high-lift camshafts or performance valve springs
  • Designed and manufactured in the USA
S&S CYCLE
09320111
15 Items

Data sheet

Marque
S&S CYCLE
Référence fournisseur
310-0732
Couleur de base
Blue
Couleur/finition
Blue
Modèle
TC3
Nom du produit
Plaque
Type
Support d'arbre à cames, Pompe à huile
Unités
Kit
Matière
Aluminium
