High Flow Camplate

€528.81
Tax included

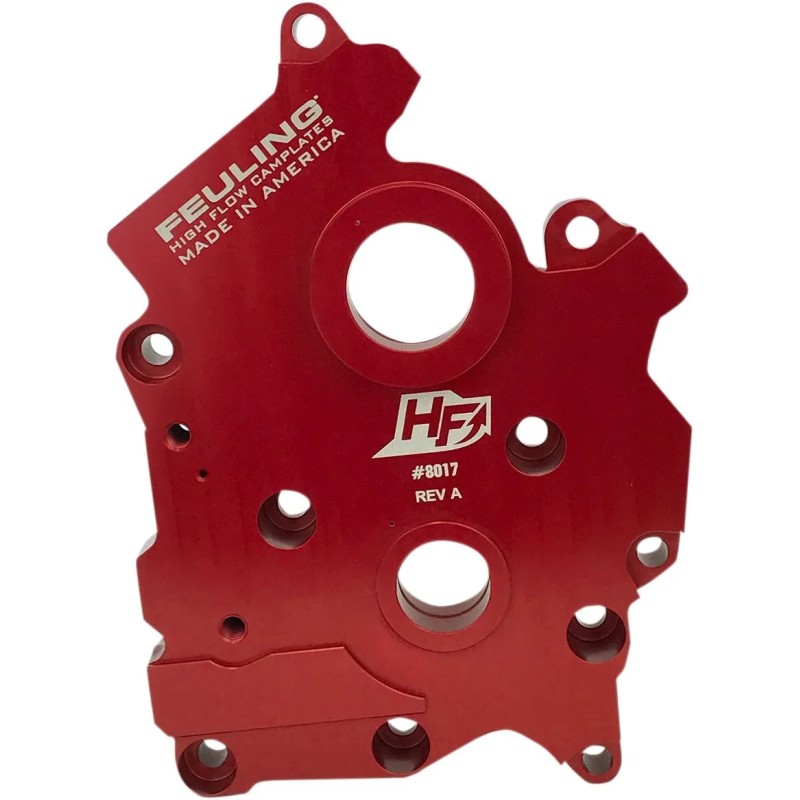

CNC-machined 7075 aluminum camplate, 50% harder and stronger than stock/OE+. Optimizes oil flow with crankcase-matched passages. Reduces engine/oil temps by 15–25°F with a Feuling HP+ or RS pump. Up to +2 hp/+2 ft-lb with the Race pump. Made in the USA. Compatible with chain or gear drive (plate #0932-0036 required for gear drive). For use only with Feuling M‑Eight HP+ and Race Series pumps.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Increases engine oil volume and flow by enlarging the oil pump cavities and critical oil passages, including scavenge return ports, from the pump to and through the camplate
  • The camplate’s oil ports are matched to the crankcase to increase oil flow throughout the engine
  • Lowers engine temperature by 15 to 25 degrees and oil temperature by 15° to 25° when used with a Feuling® HP+ or RS oil pump
  • Machined from solid 7075 aluminum, 50% harder and stronger than the stock factory casting and Feuling® OE+ camplates
  • Increases camplate rigidity and hardness, maintains tighter tolerances under heat, eliminates flexing, and removes the need for bronze bushings
  • When paired with the corresponding Feuling® Race Series oil pump, can deliver gains of up to 2 horsepower and up to 2 ft.-lb. of torque
  • Made in the U.S.A.
  • Compatible with chain- or gear-driven cams (block-off plate PART No. 0932-0036 required with gear drive)
  • For use only with Feuling® HP+ and Race Series M-Eight oil pumps
FEULING PARTS
09320192
15 Items

Data sheet

Marque
FEULING PARTS
Référence fournisseur
8017
Couleur/finition
Red
Nom du produit
Cache arbres à cames
Type
Pompe à huile
Unités
Pièce
Matière
Aluminium 7075 taillé dans la masse
Aluminium 7075 taillé dans la masse
