HP+® High Volume Oil Pump

€1,058.22
Tax included

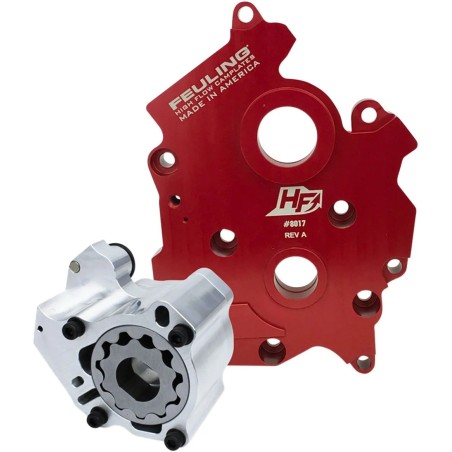

FEULING high-volume oil pump + camplate kit for Milwaukee-Eight: increases pressure and flow (up to +30 psi), improved scavenging, reduced leaks and wear, lower engine and oil temps (approx. 15–30°F) for smoother, quieter operation. Machined from 6061/7075 aluminum, bench-tested. Measured gains up to +2 hp. Made in the USA.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Increases oil pressure, total volume, engine flow, and scavenging capacity
  • Promotes quieter, smoother engine operation
  • Lowers engine operating temperature by 15° to 25°
  • Reduces oil temperature by 15° to 30°
  • Adds 10 to 30 psi of oil pressure
  • Helps eliminate oil leaks, limit wear, and avoid greasy air filters
  • Testing shows a gain of 2 horsepower and 2 ft‑lb of torque at the rear wheel on M‑Eight
  • Includes a high‑volume 6061 aluminum oil pump and a FEULING® High Flow camplate made from 7075 aluminum, 50% harder and stronger than stock or FEULING® OE+ plates
  • Increases oil flow and volume via enlarged pump reservoirs and optimized critical passages, with the camplate port holes aligned to the engine case ports, resulting in increased …
  • Bench‑tested oil pumps; relief valve seals at a minimum of 30 psi, fully opens between 55 and 60 psi
  • Proper lubrication requires the increased volume from larger gears, correctly sized passages, and the pressure‑relief seat and seal these pumps provide
  • The FEULING® oil pump and camplate combination eliminates common stock oil‑system pressure and scavenging issues
  • FEULING® M‑Eight oil pumps feature a machined groove in the rear cover to accept the stock crankshaft seal
  • Made in the USA
  • FEULING® testing indicates up to a 50% reduction in engine sump oil level
  • EU: 0.69 to 2.06 bar of additional oil pressure
  • Optional camplate/oil pump mounting kit, part no. 2401‑0993, sold separately
  • EU: testing shows a gain of 2 horsepower and 2.71 Nm of torque at the rear wheel on M‑Eight
  • The M‑Eight oil pickup is on the right side of the engine; idling or warming the bike on the side stand naturally fills the sump and skews the oil level in the tank
  • EU: bench‑tested oil pumps; relief valve seals at a minimum of 2.06 bar, fully opens between 3.79 and 4.13 bar
FEULING PARTS
09251255
6 Items

Data sheet

Marque
FEULING PARTS
Référence fournisseur
7196
Caractéristiques
Oil Cooled
Couleur/finition
Red
Style
Distribution par chaîne, Distribution pignon
Distribution par chaîne, Distribution pignon
Type
Huile
Unités
Kit
Nom du produit
Kit pompe
Modèle
HP+®
HP+®
Matière
Aluminium 6061 taillé dans la masse
Aluminium 6061 taillé dans la masse
