HP+® High Volume Oil Pump

€1,058.22
€952.40 Save 10%
Tax included
FEULING high-volume oil pump + camplate kit for Milwaukee-Eight: increases pressure and flow (up to +30 psi), improved scavenging, reduced leaks and wear, lower engine and oil temps (approx. 15–30°F) for smoother, quieter operation. Machined from 6061/7075 aluminum, bench-tested. Measured gains up to +2 hp. Made in the USA.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Increases oil pressure, total volume, engine flow, and scavenging capacity
  • Promotes quieter, smoother engine operation
  • Lowers engine operating temperature by 15° to 25°
  • Reduces oil temperature by 15° to 30°
  • Adds 10 to 30 psi of oil pressure
  • Helps eliminate oil leaks, limit wear, and avoid greasy air filters
  • Testing shows a gain of 2 horsepower and 2 ft‑lb of torque at the rear wheel on M‑Eight

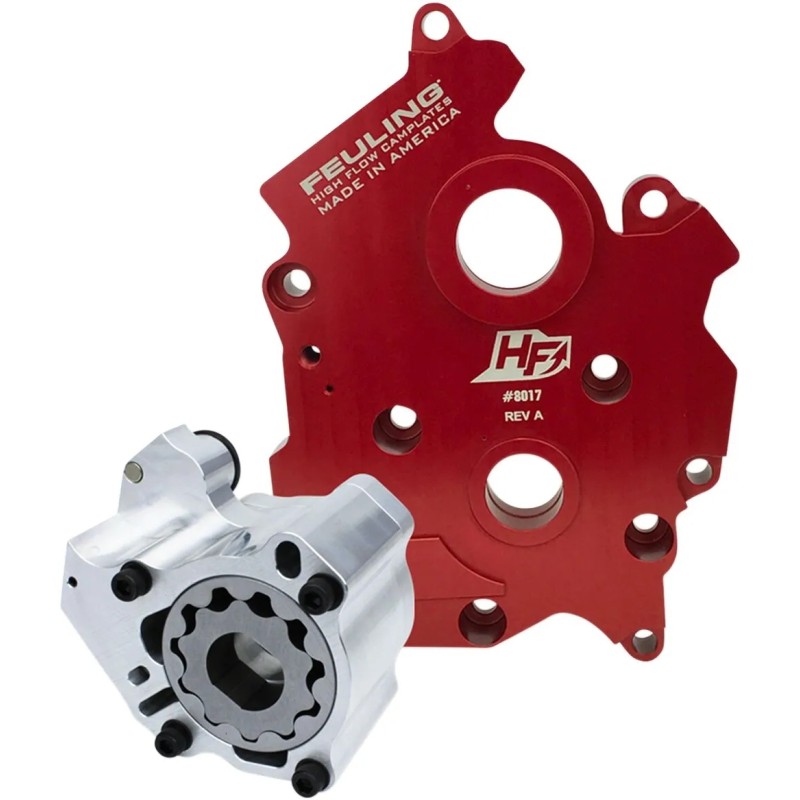

  • Includes a high‑volume 6061 aluminum oil pump and a FEULING® High Flow camplate made from 7075 aluminum, 50% harder and stronger than stock or FEULING® OE+ plates
  • Increases oil flow and volume via enlarged pump reservoirs and optimized critical passages, with the camplate port holes aligned to the engine case ports, resulting in increased …
  • Bench‑tested oil pumps; relief valve seals at a minimum of 30 psi, fully opens between 55 and 60 psi
  • Proper lubrication requires the increased volume from larger gears, correctly sized passages, and the pressure‑relief seat and seal these pumps provide
  • The FEULING® oil pump and camplate combination eliminates common stock oil‑system pressure and scavenging issues
  • FEULING® M‑Eight oil pumps feature a machined groove in the rear cover to accept the stock crankshaft seal
  • Made in the USA
  • FEULING® testing indicates up to a 50% reduction in engine sump oil level
  • EU: 0.69 to 2.06 bar of additional oil pressure
  • Optional camplate/oil pump mounting kit, part no. 2401‑0993, sold separately
  • EU: testing shows a gain of 2 horsepower and 2.71 Nm of torque at the rear wheel on M‑Eight
  • The M‑Eight oil pickup is on the right side of the engine; idling or warming the bike on the side stand naturally fills the sump and skews the oil level in the tank
  • EU: bench‑tested oil pumps; relief valve seals at a minimum of 2.06 bar, fully opens between 3.79 and 4.13 bar
FEULING PARTS
09251255
8 Items

Data sheet

Marque
FEULING PARTS
FEULING PARTS
Référence fournisseur
7196
7196
Caractéristiques
Oil Cooled
Oil Cooled
Couleur/finition
Red
Red
Style
Distribution par chaîne, Distribution pignon
Distribution par chaîne, Distribution pignon
Distribution par chaîne, Distribution pignon
Type
Huile
Huile
Unités
Kit
Kit
Nom du produit
Kit pompe
Kit pompe
Modèle
HP+®
HP+®
HP+®
Matière
Aluminium 6061 taillé dans la masse
Aluminium 6061 taillé dans la masse
Aluminium 6061 taillé dans la masse
