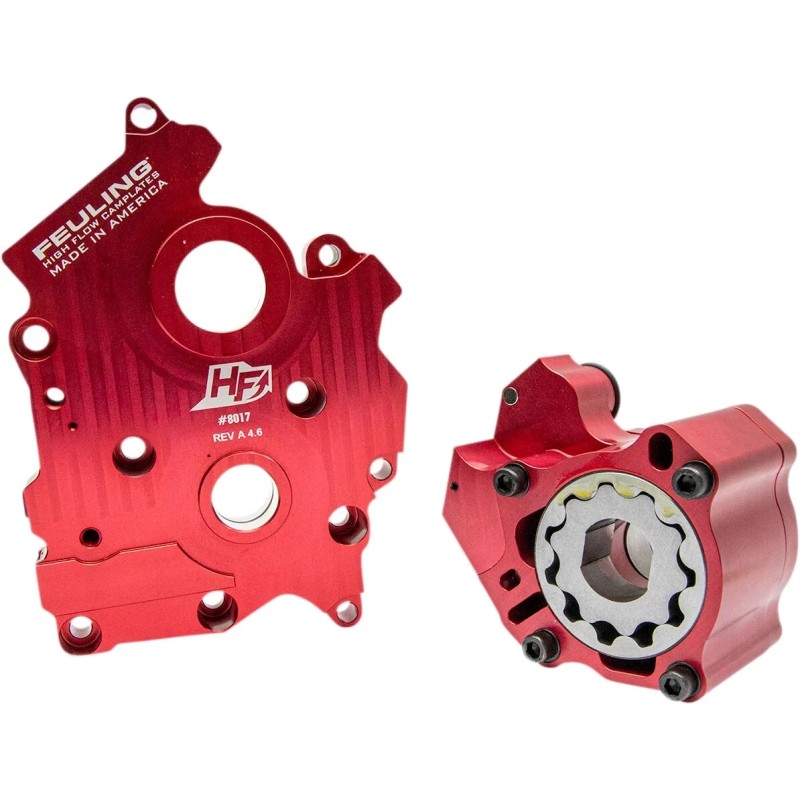

Race Series Oil Pump/Camplate Kit

€1,192.50
Tax included
FEULING kit for Milwaukee-Eight: 7075 anodized aluminum oil pump and cam plate, 50% stronger than stock. Increases oil pressure, flow, and scavenging for a quieter engine. Lowers oil temps by 15–30°F, boosts pressure by +10 to +30 psi. Reduces leaks and wear, cutting sump oil by up to 50%. Adds +2 hp and +2 ft-lb at the wheel. Made in the USA.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Increase engine oil pressure, volume, flow, and oil scavenging capacity
  • Provide smoother, quieter engine operation
  • Reduce engine temperatures by 15° to 25°
  • Reduce oil temperature by 15° to 30°
  • Provide an oil pressure gain of 10 to 30 psi
  • Help eliminate oil leaks, premature wear, and oil-soaked air filters
  • Rear-wheel tests on M‑Eight: +2 hp and +2 ft-lbs of torque
  • 7075 billet aluminum oil pump, hard anodized; 50% stiffer and stronger than stock, ensuring tighter high-temperature tolerances (M‑Eight Race Series®)
  • Includes a FEULING® High Flow 7075 aluminum camplate, 50% harder and stronger than stock or FEULING® OE+ plates
  • Increases oil volume and flow via enlarged pump cavities and critical passages, with camplate oil ports aligned to the case ports to boost flow and scavenging
  • Bench-tested oil pumps: relief valve sealed to a minimum of 30 psi, fully opens between 55 and 60 psi
  • For optimal lubrication, these pumps deliver increased volume via larger gears, properly sized passages, and a matched pressure-relief seat and seal
  • The FEULING® oil pump and camplate combo eliminates the recurring pressure and scavenging issues found on stock systems
  • FEULING® M‑Eight pumps feature a machined groove in the rear cover to accept the OE crank seal
  • Made in the USA
  • FEULING® measurements: up to a 50% reduction in the amount of oil present in the engine crankcase
  • EU: rear-wheel measurements on M‑Eight — +2 hp and +2.71 Nm of torque
  • On M‑Eight engines, the oil pick-up port is on the right side of the engine: letting the bike idle or warm up on the side stand fills the crankcase and skews the tank level reading
  • EU: bench-tested pumps — relief valve sealed to at least 2.06 bar, fully open between 3.79 and 4.13 bar
FEULING PARTS
09251256
4 Items

Data sheet

Marque
FEULING PARTS
FEULING PARTS
Référence fournisseur
7197
7197
Caractéristiques
Oil Cooled
Oil Cooled
Couleur/finition
Red
Red
Style
Distribution par chaîne, Distribution pignon
Distribution par chaîne, Distribution pignon
Type
Huile
Huile
Unités
Kit
Kit
Nom du produit
Pompe
Pompe
Modèle
Race Series®
Race Series®
Race Series®
Matière
Aluminium
Aluminium
Aluminium
