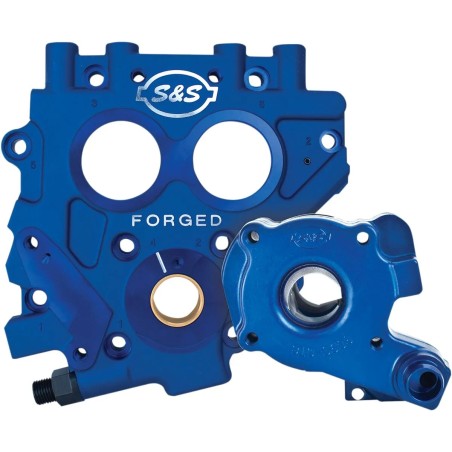

TC3 Oil Pump and Cam Support Plate Kit
search
  • TC3 Oil Pump and Cam Support Plate Kit

TC3 Oil Pump and Cam Support Plate Kit

€964.25
Tax included
CNC‑machined forged aluminum oil pump delivers rigidity and stability with no porosity. Dual, separate scavenge pickups (flywheel/cam chest) with a magnetic trap; rotors protected from debris. Removable service plugs. Bronze pinion bushing; replaceable cam bushings (07-15). Externally adjustable oil pressure—no removal required. 99-06 cam plate for hydraulic tensioners. Made in the USA.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Forged aluminum body, CNC-machined for precision
  • Significantly improved stiffness and structural strength
  • Excellent long-term dimensional stability
  • Zero internal porosity
  • Separate scavenge circuits for the crankcase and the cam chest, each area scavenged efficiently without interference
  • Gerotors designed to tolerate greater pinion shaft runout without damage
  • The cam chest incorporates a magnetic trap protecting the scavenge rotors from metal particles
  • Protection for both scavenge rotors against debris, the leading cause of failures in stock oil pumps
  • Removable passage plugs for easier maintenance
  • Bronze pinion bushing on all models, with replaceable bronze cam bushings on 2007–2015 versions
  • Adjustable oil pressure regulator – can be adjusted without removing the cam plate
  • The 1999–2006 cam support plate is designed for modern hydraulic tensioners, as the original (1999–2006) spring-loaded tensioners do not sufficiently control valve timing at high RPM, especially with high-lift cams or performance valve springs
  • Made in the USA
S&S CYCLE
09320110
14 Items

Data sheet

Marque
S&S CYCLE
S&S CYCLE
Référence fournisseur
310-0731
310-0731
Couleur de base
Blue
Blue
Couleur/finition
Blue
Blue
Type
Support d'arbre à cames, Pompe à huile
Support d'arbre à cames, Pompe à huile
Unités
Kit
Kit
Nom du produit
Plaque
Plaque
Modèle
TC3
TC3
TC3
Matière
Aluminium
Aluminium
Aluminium
