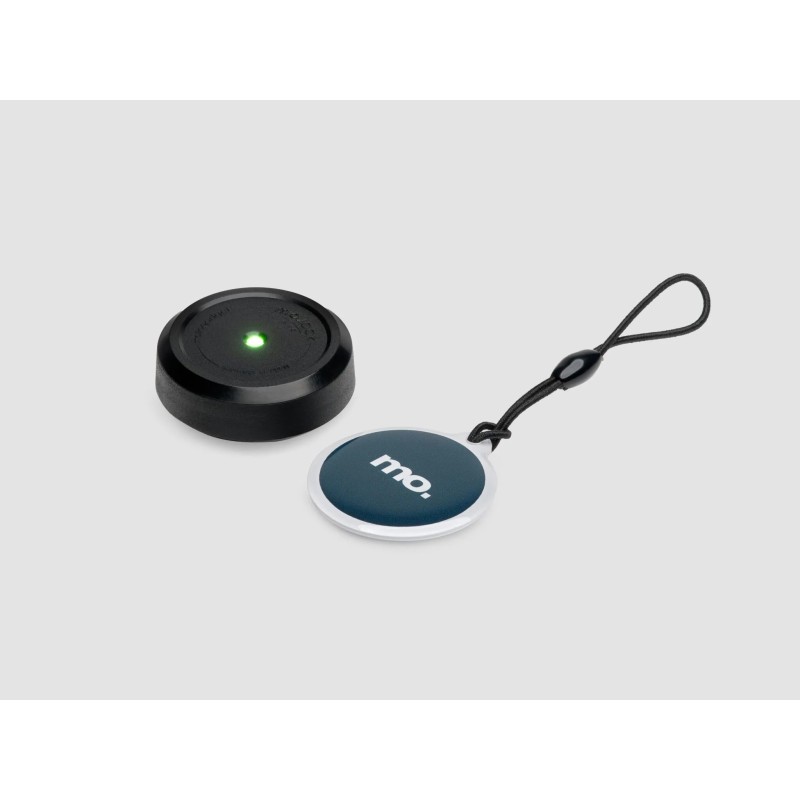

mo.lock NFC Lock
€149.00
Tax included
NFC digital ignition switch, more secure than RF remotes and a replacement for mechanical switches. Compact and concealable behind non‑metallic panels, it switches via a 40 A relay, has low standby draw, and offers a contactless range of about 4 cm. Sealed, vibration‑resistant housing with RGB status LED. Passive keys (30 mm, 2 g) with unique, programmable codes. Operating voltage: 8–18 V DC.
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
- Digital ignition switch replacing the mechanical switch or its electrical switching function.
- NFC (Near Field Communication) technology, regarded as secure against radio remote controls.
- Compact form factor allows discreet installation behind non-metallic components.
- No overload or overheating of contacts thanks to indirect switching via a 40 A load relay.
- The lock automatically reduces standby current in three stages when not in use.
- Fully sealed and vibration-resistant thanks to non-flammable thermoset overmolding.
- Contactless switching distance of about 4 cm for safe activation/deactivation without false triggers.
- Integrated RGB LED indicating the lock status during operation and when learning new keys.
- Battery-free keys, 30 mm diameter, weight 2 g.
- Additional keys available and programmable for the lock; each key has a unique code.
- Technical data:
- Mounting: 1 M3 threaded bushing at the rear, bracket with 2 mounting holes.
- Operating temperature: -20 to +80 °C.
- Height: 12 mm (without contacts or housing).
- Weight: approx. 35 g.
- Operating voltage: 8 V to 18 V.
- Diameter of the vehicle-mounted transmitter/receiver: 32 mm.
- Replaces part number 0521-0889.
