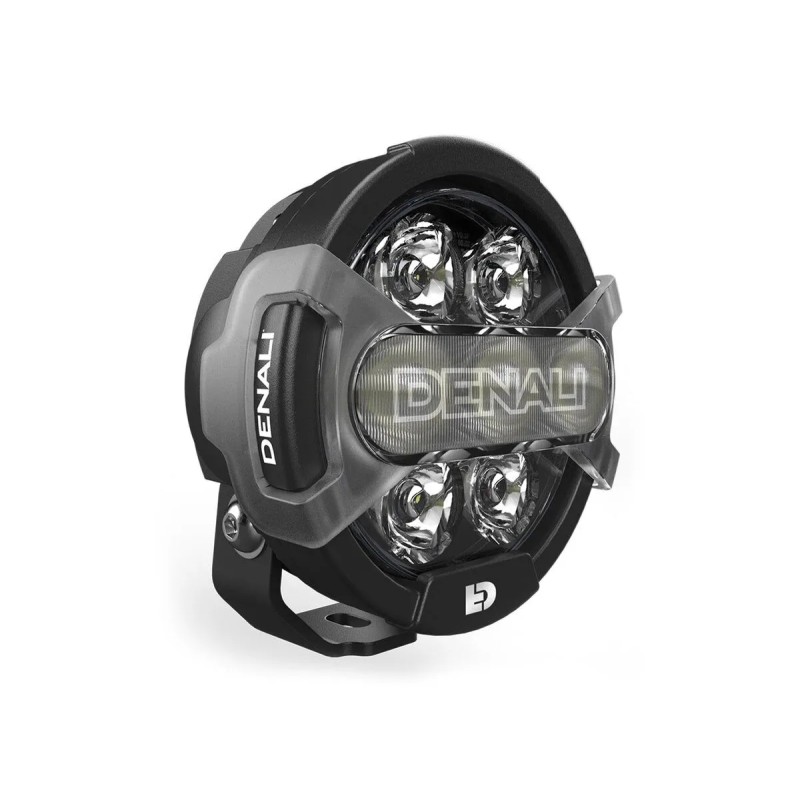

D7 PRO Multi-Beam Driving Light Pods with Modular X-Lens System

€499.74
Tax included
HiDrive D7 PRO 4.4" driving light: 7 Cree XML3 LEDs (14 W each), 11,900 lm total and 98 W (8 A). Dual‑Beam technology with independent control of spot, wide or hybrid beams (spot range 380 m). Configurable X‑Lens (white/amber/yellow), DRL Boost and integrated turn signal, CANsmart & DialDim compatible, E‑Mark approved spot lens.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • HiDrive LEDs : 11,900 lumens per module — seven 14 W LEDs with proprietary TIR optics, designed as the most powerful projector in a footprint under 4.5".
  • Dual-Beam Technology : independent control and dimming of the wide center beam, the side spot beam, or the combined hybrid mode for precise light tuning.
  • Modular Snap-On X-Lens : allows instant customization of beam shape and tint. The center beam color is interchangeable between white, amber, or selective yellow.
  • DRL Boost Mode : use the center LEDs as low-intensity daytime running lights (DRLs), or boost their output to create a high-intensity wide beam.
  • Integrated flash/turn-signal mode : the center optics can operate as amber DRLs or as the projector and flash in sync with the vehicle's turn signals for visible, integrated signaling.
  • CANsmart & DialDim compatibility : control both circuits with a single DialDim switch or access more than 20 functions and settings via the CANsmart accessory manager for advanced integration and control.
  • D7 PRO (Single Pod) specifications :
  • LED type : 7 × 14 W Cree XML3, delivering high power and efficiency.
  • Power consumption : 98 W, approximately 8 amps.
  • Raw output : 11,900 lumens per module.
  • Spot beam throw : up to 1,250 ft (380 m) for long-range visibility.
  • Beam width : covers up to 250 ft (75 m) across for extended peripheral illumination.
  • Pod dimensions : diameter 4.4" (round) × depth 2.9".
  • E‑Mark approved spot lens : road-legal beam compliant with ECE R112.
DENALI
20012952
15 Items

Data sheet

Width
73 mm (2-7/8")
volts
9-32 VCC
watts
98 W
Forme
Rond
ampères
8 A
Couleur du verre
Transparent
Couleur de l'éclairage/LED
White
Luminosité
11900 lm
Marque
DENALI
Référence fournisseur
DNL.D7P.050
Caractéristiques
Étanche IP69, Étanchéité IP68
Nom du produit
Phare
Type
Feu de gabarit
Unités
Pièce
