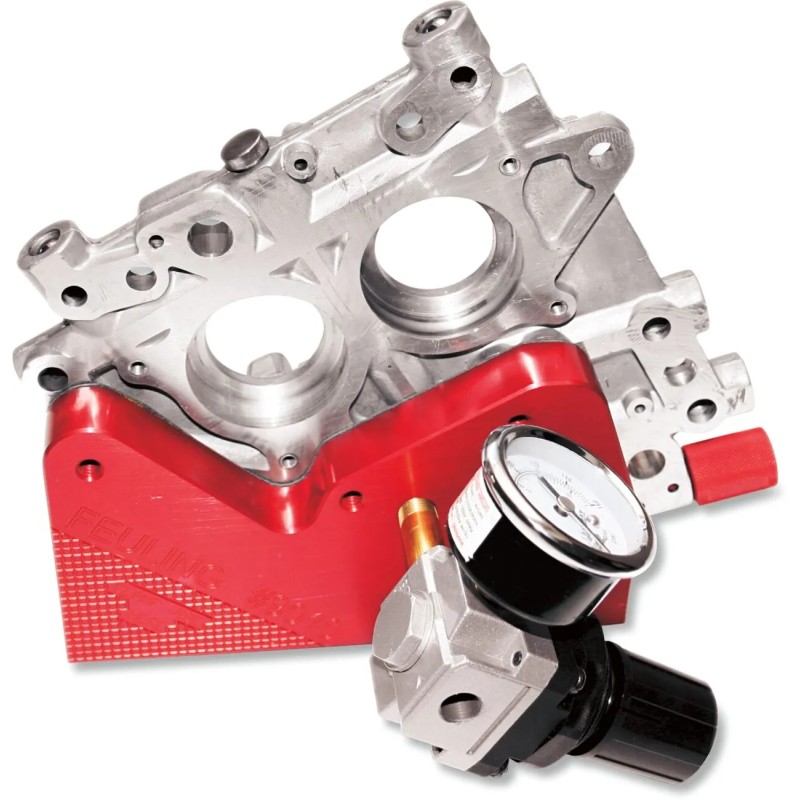

Camplate Tool
search
  • Camplate Tool

Camplate Tool

€268.42
€241.58 Save 10%
Tax included
Camplate pressure tester for checking the relief valve opening pressure, with adjustable spring tension. Supplied with air regulator, 0–100 psi pressure gauge, gasket and hardware. Made in the USA; compatible with all Twin Cam camplates (’07–’17: one unused screw hole). Feuling recommendations: seated 0–30 psi (0–2.06 bar), opening 55–60 psi (3.79–4.13 bar). Bench-test before installation.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Allows the engine builder to check the opening pressure of the camplate relief valve; the spring tension is adjustable to achieve the desired pressure.
  • Tool includes: air regulator to control the pressure applied during the test.
  • Tool includes: pressure gauge graduated from 0 to 100 psi for precise reading.
  • Tool includes: gasket and all hardware necessary for installation and sealing during testing.
  • Design and manufacture: made in the USA to ensure quality and durability.
  • Feuling® (US) recommendation: the camplate valve should be set between 0 and 30 psi at the seat, with full open between 55 and 60 psi.
  • Inspection procedure: bench-test the camplate before any installation on the engine; actuate the relief valve, check for correct operation and sealing — any leak at the valve will result in a drop in oil pressure.
  • Compatibility: the Camplate pressure tester is compatible with all OEM and aftermarket Twin Cam camplates; on camplates for 2007–2017 models, one screw hole will remain unused during installation.
  • Feuling® (EU) recommendation: for Europe, Feuling® recommends a camplate valve seat pressure between 0 and 2.06 bar, with full open between 3.79 and 4.13 bar.
FEULING PARTS
38010071
5 Items

Data sheet

Marque
FEULING PARTS
Référence fournisseur
9010
Couleur/finition
Noir, Rouge, Argent
Nom du produit
Outil pour plaque d'arbre à cames
Type
Soupape de décharge PSI
Unités
Pièce
