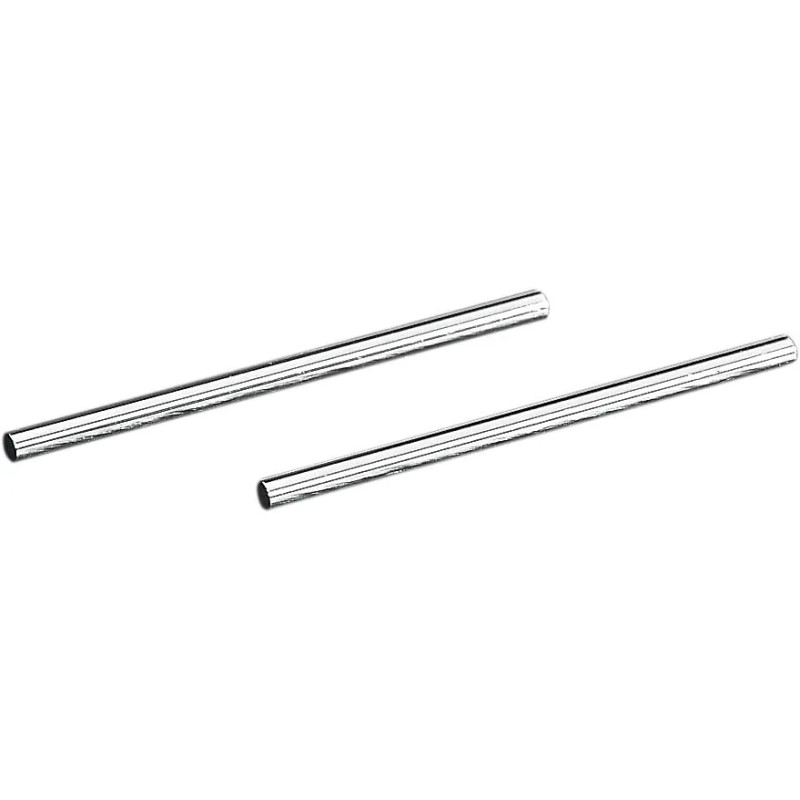

Gauge Pins
search
  • Gauge Pins

Gauge Pins

€34.32
Tax included
Measures the outside diameter of the cam drive gears. Made in the USA. Notes: for '90–'99 the shaft measurement range goes from .006" to .003"; the large gears are identical for '84–'89 and '90–'99 (green/black codes). The '90 H‑D manual lists shafts as .108" (vs .105"), i.e. ~.012" larger; on '92 engines the original gears are interchangeable but the outside diameter is reduced by .025".
Quantity
Out-of-Stock

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • To measure the outside diameter of camshaft sprockets
  • Made in the USA
  • Two main differences between cam sprocket sizes for '90-'99 and earlier years:
    • The overall shaft measurement range was reduced in 1990 from .006" to .003".
    • The large sprockets are the same size for '84-'89 and '90-'99 (green and black color codes).
  • The sprocket measurements (on shafts) are listed in the H-D '90 manual with .108" shafts instead of .105" as before.
  • For the same sprocket, the measurement on .108" shafts will be approximately .012" larger than on .105" shafts.
  • On '92 engines, the original cam sprockets are interchangeable with earlier versions, but the outside diameter was reduced by .025".
ANDREWS
DS199106

Data sheet

Système de mesure
SAE
Diamètre extérieur
2,74 mm (0,108")
Marque
ANDREWS
Référence fournisseur
212116
Couleur/finition
Argent
Nom du produit
Goupille de mesure
Type
Pignon d'entraînement d'arbre à cames
Unités
Paire
Matière
Acier allié
