Race Series® Oil Pump

€666.08
€599.47 Save 10%
Tax included

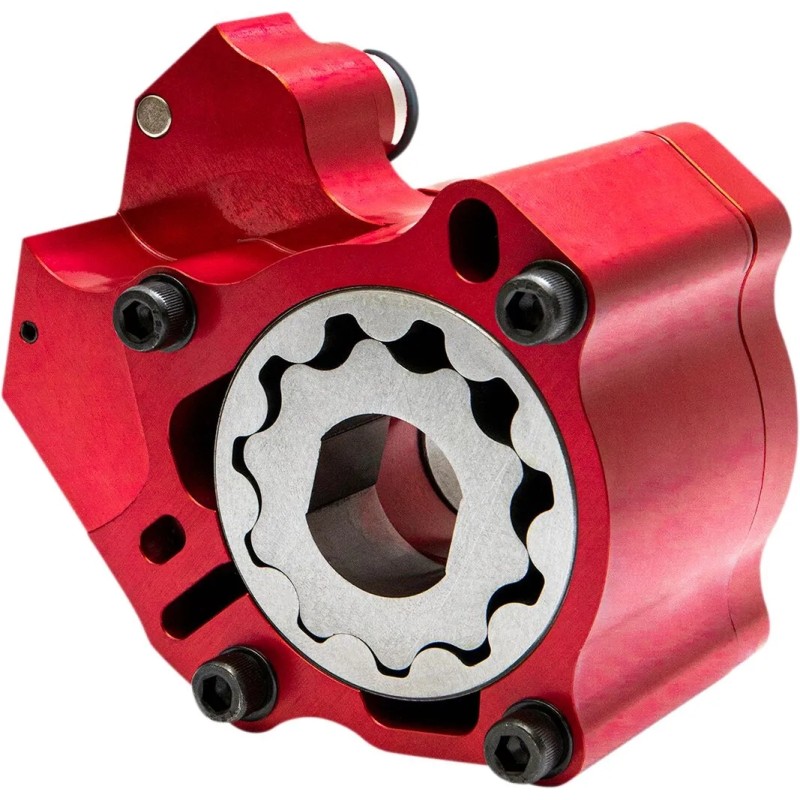

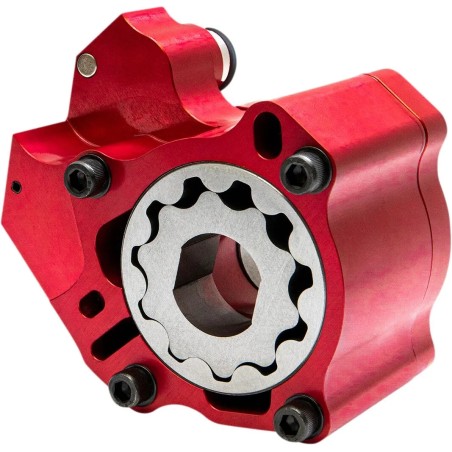

FEULING high‑capacity oil pump in anodized 7075 aluminum (Made in USA). Oversized gerotor gears and optimized passages increase flow and oil scavenging to the crankshaft (up to +68%), lowering temperatures and reducing pressure issues. Machined and tested relief valve, opens at 55–60 psi. Requires FEULING High‑Flow cam plate.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Increased oil volume thanks to larger gears and redesigned oil passages, plus an optimized relief valve seat and seal—key elements for proper lubrication system operation
  • Eliminates common oil pressure and pickup issues encountered with the stock lubrication system
  • Relief valve and bore precision-machined for reliable, consistent performance
  • Each oil pump is bench-tested; the relief valve is sealed to at least 30 psi and opens fully between 55 and 60 psi
  • FEULING® M‑Eight oil pumps feature a machined groove in the rear cover to accept the stock crankshaft seal
  • Requires installation of the FEULING® High Flow cam plate; the assembly increases oil flow into and out of the engine through corrected tolerances, optimized passages, and enlarged gerotor gears
  • Helps reduce engine and oil temperatures, increases pressurized oil volume and return volume to minimize oil accumulation in the crankcase
  • High-capacity chrome‑molybdenum gerotor gears, size 2.250"
  • 42% increase in recovery (scavenge) volume thanks to passages, port sizes, and drillings matched to the engine case
  • 68% increase in oil volume sent to the crankshaft and connecting rod
  • Magnets to protect the gears and relief valve from metal particles
  • Testing shows increases in horsepower and torque measured at the rear wheel
  • For M‑Eight Twin‑Cooled™ engines: +30% pressurized gear volume and +53% recovery gear volume compared to stock
  • For M‑Eight Oil‑cooled™ engines: +27% pressure and +27% recovery volume compared to stock
  • 7075 aluminum machined body, red anodized; this material holds tight tolerances with temperature and is 50% harder and stronger than 6061 aluminum
  • Increased kidney-shaped port volume (suction side) compared to HP+® oil pumps
  • Increases oil pressure as well as recovery volume for a more efficient system
  • Helps reduce oil and engine temperatures for improved longevity
  • Made in the USA
  • Enlarged and optimized passages, orifices, and galleries; requires alignment with the FEULING® High Flow cam plate (PART No. 0932‑0192)
FEULING PARTS
09320216
14 Items

Data sheet

Marque
FEULING PARTS
Référence fournisseur
7021
Caractéristiques
Twin Cooled
Couleur/finition
Rouge, Anodisé
Modèle
Race Series®
Nom du produit
Pompe
Type
Pompe à huile
Unités
Pièce
Matière
Aluminium 7075 taillé dans la masse
