  • 132 Power Package for M8

132" Power Package for M8

€4,429.76
€3,986.78 Save 10%
Tax included

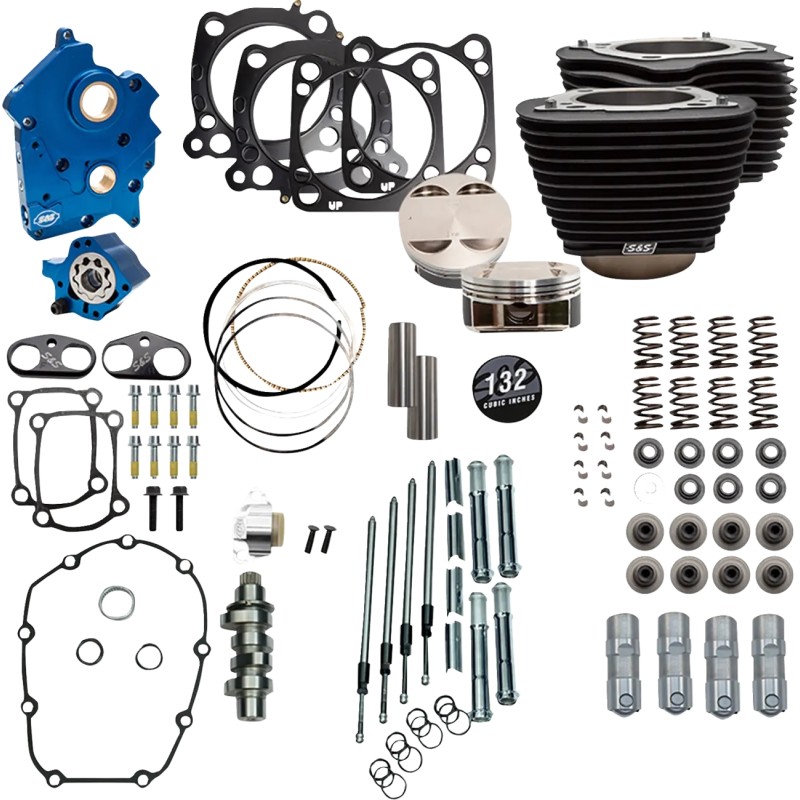

Bolt-on big-bore kit: converts 114"/117" (4.5" stroke) motors to 132" without case machining. 4.32" bore cylinders with forged pistons (11.0:1). S&S oil pump and cam plate; separate oil pickups with screens and magnet; adjustable flow and pressure-relief valve. Exhaust, base and head gaskets included. Made in the USA. Not compatible with 121" CVO; intake and rocker gaskets not included.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Bolt-on big-bore kit allowing an increase in displacement of 114" and 117" engines with a 4.5" M8 stroke up to 132" without case machining.
  • Set of 4.32" bore cylinders accompanied by forged pistons for increased durability and a compression ratio of 11.0:1.
  • S&S oil pump and timing cover delivered with a refined blue anodized finish.
  • Removable inspection plugs designed to facilitate maintenance and internal access.
  • Independent-section oil scavenging systems separating the crankcase and the cam chamber.
  • Debris screens installed in both scavenger inlets to limit dirt ingress and extend component life.
  • Integrated magnet in the cam cover to capture metal particles and protect the oil pump from debris.
  • Increased oil flow capacity on both the feed and return circuits to improve engine lubrication.
  • Adjustable pressure relief valve, accessible and adjustable once the unit is installed in the engine for precise tuning.
  • Supplied with Quickee Pushrods for fast, reliable motion transmission.
  • S&S premium tappets provided to ensure robust and precise rocker operation.
  • S&S machined aluminum tappet cuffs, hard-anodized with a black coating for increased wear resistance.
  • S&S 550 camshafts specifically designed for big-bore applications to optimize performance.
  • S&S valve springs compatible with camshafts exhibiting up to 0.605" of lift.
  • Single-wire high-performance conical spring included for optimal valve control at high RPM.
  • Exhaust gaskets, cylinder base gasket and head gasket supplied with the kit for a complete installation.
  • Product manufactured in the United States, ensuring quality and compliance with S&S standards.
  • Not compatible with 121" CVO engines.
  • Intake and rocker box gaskets are not included in this kit.
S&S CYCLE
09040163
8 Items

Data sheet

Taux de compression
11,0:1
Système de refroidissement
Refroidi par huile
Type arbre à cames
Chaîne
Marque
S&S CYCLE
Référence fournisseur
310-1233C
Caractéristiques
Tubes de tiges de culbuteur chromés
Couleur/finition
Ailettes non mises en valeur, Noir Wrinkle
Modèle
Power Package
Nom du produit
Kit Performance
Type
Moteur
Unités
Kit
Alésage
4,320"
Cylindrée
132"
Longueur de la course
4-1/2"
