132" Power Package for M8

€4,429.76
€3,986.78 Save 10%
Tax included

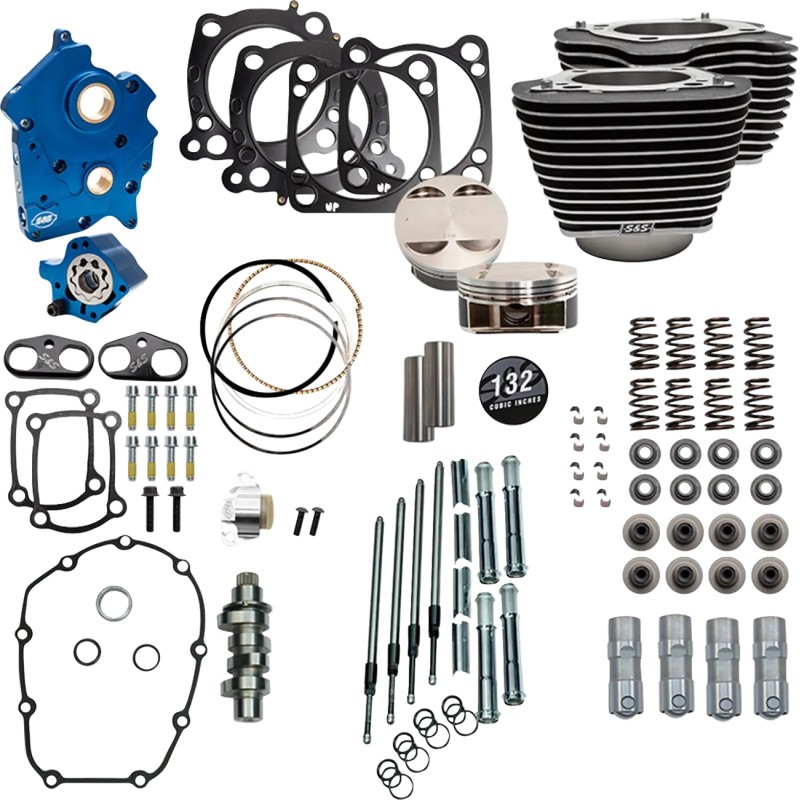

Bolt-on big-bore kit converting 114/117 (4.5" stroke) to 132" with no machining required, includes 4.32" cylinders and forged pistons (11.0:1). S&S anodized oil pump and pump cover with service access, separate oil pickups/returns with screens and magnet, adjustable flow and relief valve. S&S 550 cams and high-performance springs (≤0.605" lift). Exhaust, base and cylinder head gaskets included. Made in USA. Not compatible with 121" CVO; intake and rocker-cover gaskets not included.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Bolt-on big-bore kit that increases the displacement of 114" and 117" (4.5" stroke) engines up to 132" without crankcase machining
  • Cylinders bored to 4.32" equipped with forged pistons, compression ratio 11.0:1
  • S&S oil pump and cam plate with blue anodized finish
  • Removable access plugs for easier maintenance
  • Independent scavenging sections for the crankcase and the camshaft chamber
  • Integrated debris screens on both scavenging pickups
  • Magnet placed in the camshaft housing to trap particles and prevent them from entering the oil pump
  • Increased oil flow capacity for supply and return
  • Adjustable pressure relief valve, tunable with the unit installed in the engine
  • Quickee pushrods included
  • Premium S&S lifters included
  • S&S machined aluminum tappet cuffs with hard black anodizing
  • S&S 550 camshafts specifically designed for big-bore applications
  • S&S valve springs compatible with camshafts up to 0.605" lift
  • High-performance single-wire tapered (conical) spring
  • Exhaust gaskets, cylinder base gasket, and head gasket included
  • Made in the USA
  • Not compatible with the 121" CVO model
  • Intake gaskets and rocker box gaskets not included
S&S CYCLE
09040169
6 Items

Data sheet

Taux de compression
11,0:1
Système de refroidissement
Refroidi par eau
Type arbre à cames
Chaîne
Marque
S&S CYCLE
Référence fournisseur
310-1229C
Caractéristiques
Tubes de tiges de culbuteur chromés
Couleur/finition
Lamelles accentuées, Noir Wrinkle
Modèle
Power Package
Nom du produit
Kit Performance
Type
Moteur
Unités
Kit
Alésage
4,320"
Cylindrée
132"
Longueur de la course
4-1/2"
