  • 132 Power Package for M8

132" Power Package for M8

€4,702.68
€4,232.41 Save 10%
Tax included

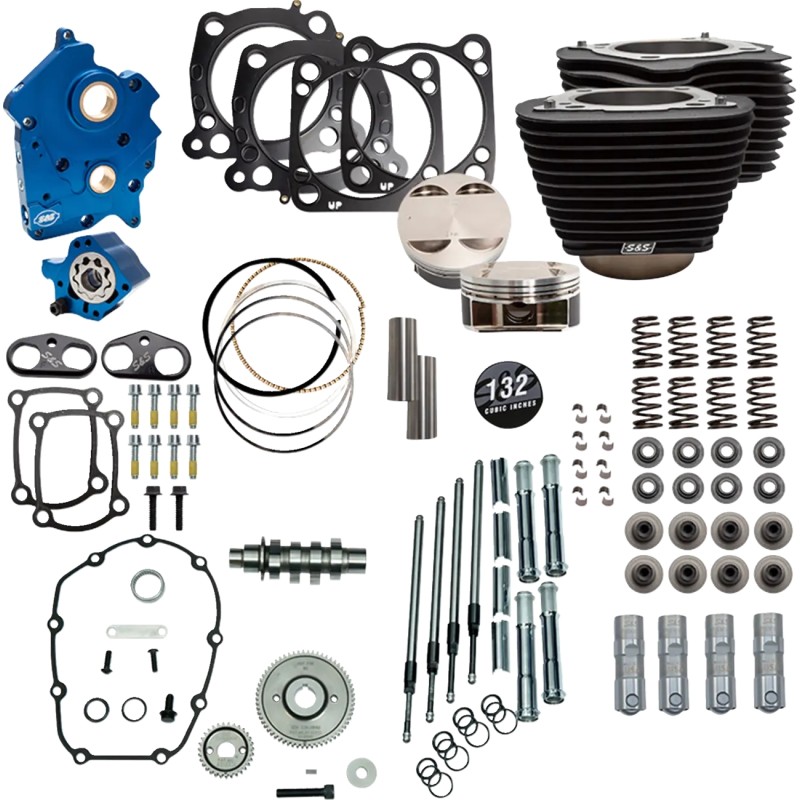

Bolt-on big-bore kit increasing engine displacement to 114"/117" (or 132" with 4.5" M8 stroke) without case machining. 4.32" bore cylinders with forged pistons (11.0:1), S&S oil pump/cam plate anodized blue, magnet and debris screens, increased oil flow and adjustable pressure relief valve, S&S 550 cams and high-performance springs. Exhaust, base and head gaskets included. Made in USA; not compatible with 121" CVO. Intake gaskets and rocker-box covers not included.
Quantity
Last items in stock

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Bolt-on big-bore kit increasing a 114"/117" M8 engine with a 4.5" stroke to 132" without case machining
  • Cylinders with a 4.32" bore equipped with forged pistons and an 11.0:1 compression ratio
  • S&S oil pump and timing plate with blue anodized finish
  • Removable access plugs for easier maintenance
  • Separate, independent scavenging sections for the crankcase and cam chamber
  • Debris screens integrated into both scavenging ports
  • Magnet located in the cam chest to prevent debris from reaching the oil pump
  • Increased oil flow capacity on both feed and return
  • Adjustable pressure relief valve, accessible and adjustable once the unit is installed in the engine
  • Quickee Pushrods included
  • Premium S&S lifters (tappets)
  • S&S pushrod sleeves, hard-anodized with a black finish, machined aluminum
  • S&S 550 camshafts specifically designed for big-bore applications
  • S&S valve springs compatible with camshafts up to 0.605" lift
  • Single-wire high-performance tapered valve spring
  • Exhaust gasket, cylinder base gasket, and head gasket supplied
  • Made in the USA
  • Not compatible with 121" CVO models
  • Intake gaskets and rocker cover gaskets not included
S&S CYCLE
09040155
1 Item

Data sheet

Taux de compression
11,0:1
Système de refroidissement
Refroidi par huile
Type arbre à cames
Engrenage
Marque
S&S CYCLE
Référence fournisseur
310-1234C
Caractéristiques
Tubes de tiges de culbuteur chromés
Couleur/finition
Ailettes non mises en valeur, Noir Wrinkle
Modèle
Power Package
Nom du produit
Kit Performance
Type
Moteur
Unités
Kit
Alésage
4,320"
Cylindrée
132"
Longueur de la course
4-1/2"
