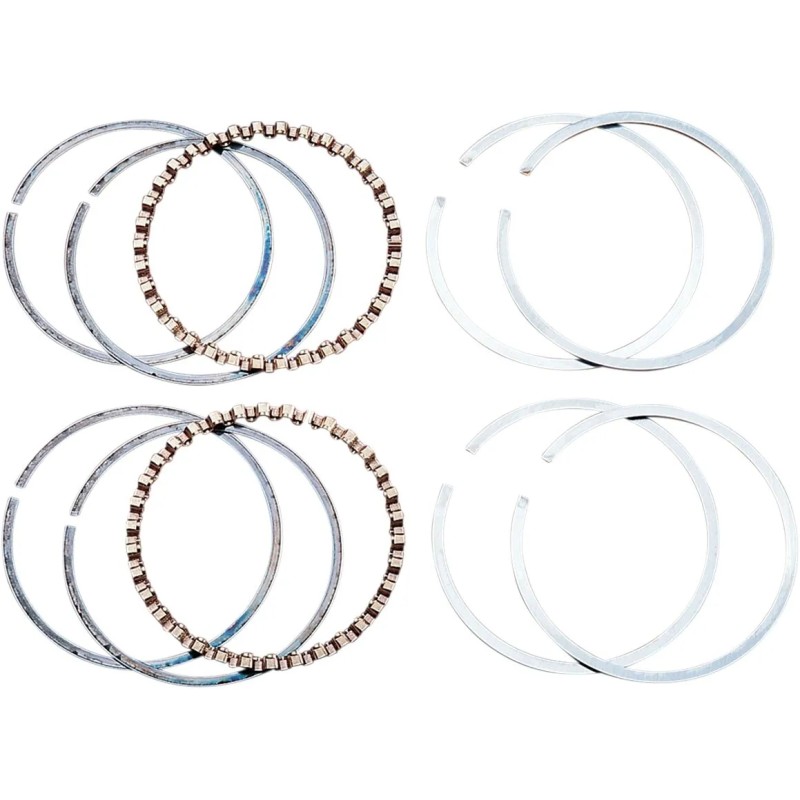

Replacement Piston Rings
search
  • Replacement Piston Rings

Replacement Piston Rings

€31.81
€28.63 Save 10%
Tax included
Ring kit for two pistons (unless otherwise specified) including a Barrel Face top compression ring, a second tapered reverse‑twist ring, and three‑piece Flex Vent oil control rings (4 steel rails, 2 expanders) for oil control and uniform pressure. Improves heat transfer and sealing. Made in the USA; observe the top ring end‑gap.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Includes top compression rings, second compression rings, and oil scraper rings.
  • Top compression rings with a "Barrel" face for improved contact with the cylinder wall.
  • Promotes heat transfer between the piston and the cylinder wall for optimal heat dissipation.
  • Provides combustion chamber gas control, allowing the piston to convert the expansion energy of the gases into crankshaft rotation.
  • Second compression ring with a tapered face and reverse-twist design to improve sealing.
  • Design promotes lateral sealing, preventing oil from passing under and behind the ring for improved oil economy.
  • Reverse-rotation ring with a machined tapered face reproducing the lower scraping edge of a positive-rotation torsion ring.
  • Three-piece Flex Vent-type oil scraper rings for effective oil control.
  • Three-piece design yielding low-section rails for better bore conformity.
  • Ensures even pressure through four steel rails combined with two expanders, for optimal oil control.
  • Made in the USA.
  • Due to the specific thermal conductivity and design of KB pistons, special attention to the top ring end gap is essential: please read the provided instructions carefully for correct installation.
  • This kit includes enough rings to outfit two pistons, unless otherwise indicated.
  • Two rings per groove are supplied, except for the rails where there will be two rail segments per expander.
HASTINGS
DS750821
5 Items

Data sheet

Matériau du segment
Revêtement molybdène
Style
Remplacement Performance
Marque
HASTINGS
Référence fournisseur
WG1145317|2M6482010
Nom du produit
Jeu de segments de piston
Unités
Lot
Alésage
3,437"
Alésage - surdimensionné
+0,010 pouce
+0,010"
