Replacement Piston Rings
search
  • Replacement Piston Rings

Replacement Piston Rings

€31.12
€28.01 Save 10%
Tax included

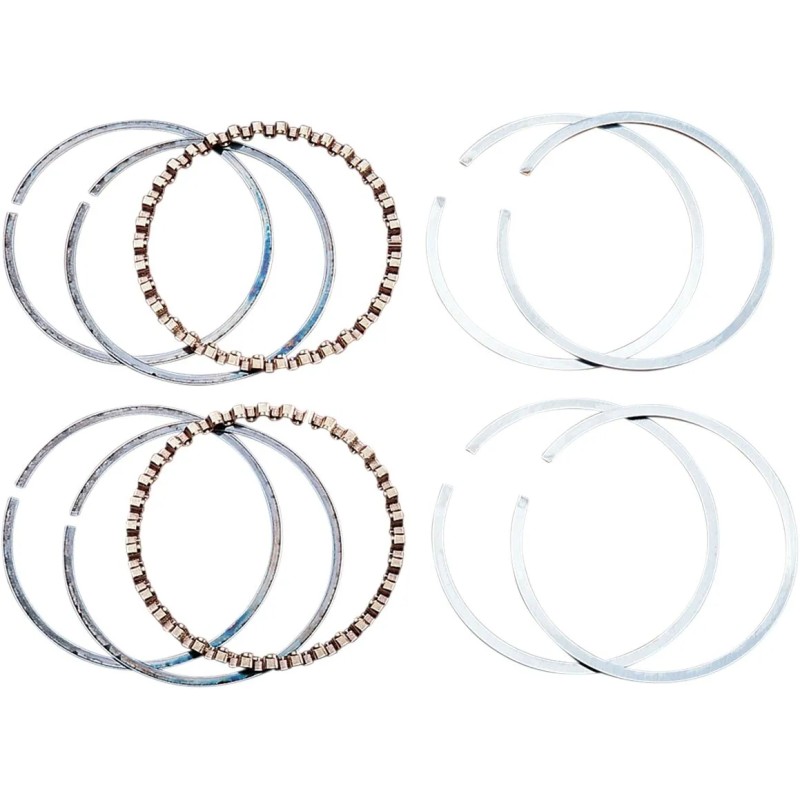

Piston ring kit (sufficient for two pistons) including barrel-faced top compression rings, reverse-twist tapered-face secondary rings, and 3-piece Flex-Vent oil rings. Three-piece design with thin rails — 4 steel rails and 2 expanders — for improved fit, heat transfer, sealing and oil control. Made in the USA — read instructions for the top ring end gap.
Quantity
Last items in stock

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Includes top and secondary compression rings as well as oil scraper rings
  • Top compression ring with barrel face (Barrel Face)
  • Promotes thermal transfer between the piston and the cylinder wall
  • Controls combustion chamber gases to allow the piston to transfer the energy of the expanding gases to the crankshaft
  • Second compression ring with tapered face and reverse twist
  • Improves side sealing by preventing oil from passing under and behind the ring for better oil economy
  • Reverse-rotation twist ring with machined tapered face reproducing the lower scraper edge of a positive-rotation twist ring
  • Three-piece Flex Vent oil scraper rings
  • Three-piece design allowing the use of low-section rails for better bore conformity
  • Ensures even pressure thanks to four steel rails and two expanders for optimal oil control
  • Made in the USA
  • Because of the thermal conductivity and design of KB pistons, special attention must be paid to the top ring end gap; please read the supplied instructions for correct installation
  • Includes enough rings to outfit two pistons (unless otherwise noted)
  • Two rings per groove, except for the rails where there will be two rail rings per expander
HASTINGS
DS750826
3 Items

Data sheet

Matériau du segment
Revêtement molybdène
Style
Remplacement Performance
Marque
HASTINGS
Référence fournisseur
WG1297671|2M6482060
Nom du produit
Jeu de segments de piston
Unités
Lot
Alésage
3,437"
Alésage - surdimensionné
+0,060"
