Replacement Piston Rings
search
  • Replacement Piston Rings

Replacement Piston Rings

€44.24
Tax included

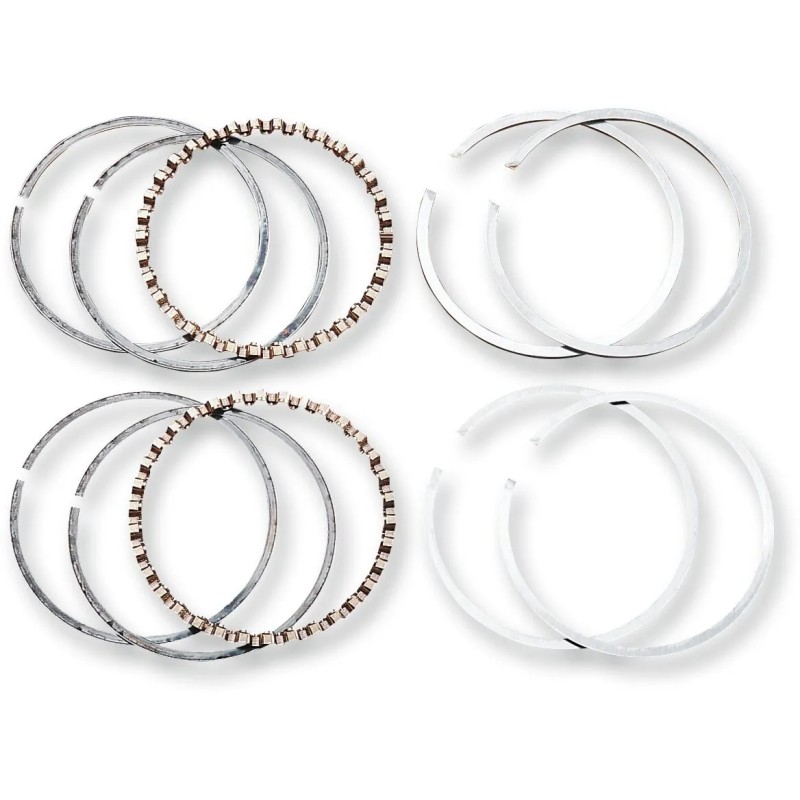

Piston ring set made in the USA for two pistons: top compression rings (Barrel Face profile), Napier-style secondary rings, and Flex Vent oil control rings. Three-piece design with thin rails — four steel rails and two expanders for uniform pressure, optimized heat transfer and side sealing; two rings per groove, rails: two per expander.
Quantity
Last items in stock

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Set includes top compression rings, second (secondary) rings and oil control (scraper) rings.
  • The top compression rings feature a Barrel Face profile.
  • Promotes heat transfer between the piston and the cylinder wall for improved heat dissipation.
  • Controls combustion chamber gases to allow the piston to transfer the energy of expanding gases to the crankshaft.
  • The second compression ring is of the Napier type.
  • Reverse-twist ring with a machined conical face reproducing the lower scraping edge of a positive-twist ring.
  • Enhances lateral sealing to prevent oil from passing under and behind the ring, ensuring improved oil control.
  • Oil scraper rings in a three-piece Flex Vent design for optimized performance.
  • Three-piece design allows low-section rails to be manufactured to improve bore conformity.
  • Provides even pressure thanks to four steel rails and two expanders, for optimal oil control.
  • Made in the USA.
  • Includes a quantity of rings sufficient to equip two pistons (unless otherwise noted).
  • Two rings per groove; for the rails, there are two rail rings per expander.
HASTINGS
DS750693
2 Items

Data sheet

Matériau du segment
Revêtement molybdène
Style
De rechange
Marque
HASTINGS
Référence fournisseur
WG1145299|2M4941005
Nom du produit
Jeu de segments de piston
Unités
Lot
Alésage
3,875"
Alésage - surdimensionné
+0,005"
