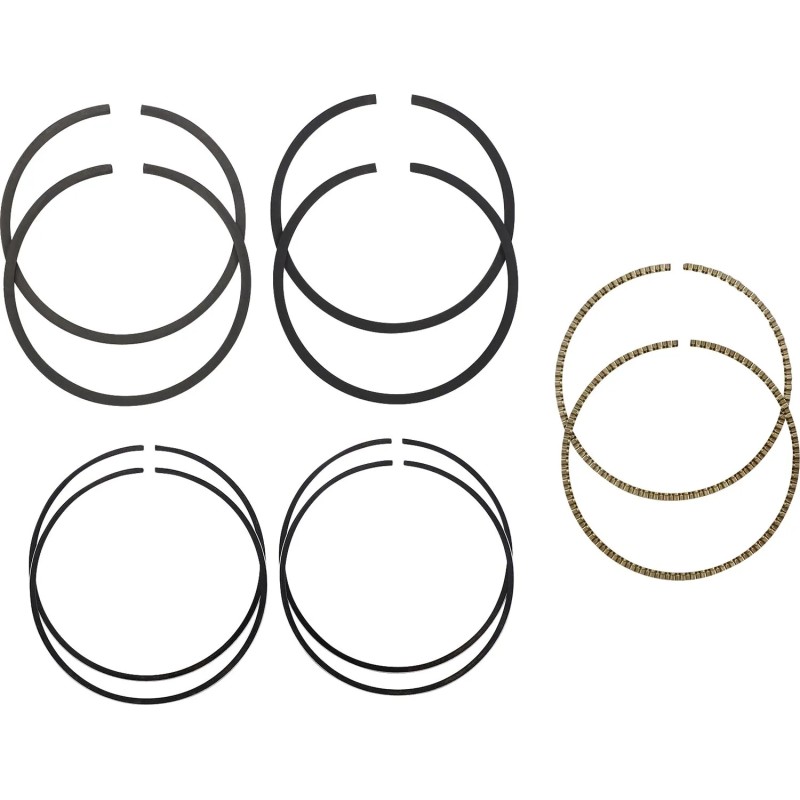

Replacement Piston Rings
search
  • Replacement Piston Rings

Replacement Piston Rings

€34.95
Tax included
Piston ring set made in the USA for two pistons: compression rings (Barrel Face profile; second ring Napier) and three-piece Flex Vent oil control rings. Low-profile design with four steel rails and two expanders for lateral sealing, improved heat transfer, gas control and optimized oil management.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Includes top and secondary compression rings as well as oil control rings.
  • The top compression ring features a Barrel Face profile for improved sealing.
  • Designed to improve heat transfer from the piston to the cylinder wall.
  • Controls combustion chamber gases so the piston can transfer the energy of the expanding gases to the crankshaft.
  • The second compression ring is Napier-type.
  • A reverse-twist ring with a machined tapered face replicates the function of the lower scraper edge of a positive-twist ring.
  • Promotes side sealing to prevent oil from passing under and behind the ring, ensuring better oil control.
  • The oil control rings are a three-piece Flex Vent design.
  • The three-piece design allows for low-profile rails for improved bore conformity.
  • Four steel rails and two expanders provide even pressure and optimal oil control.
  • Product made in the USA.
  • Contains a sufficient number of rings to equip two pistons (unless otherwise noted).
  • Two rings are supplied per groove, except for the rails where each expander is accompanied by two rail rings.
HASTINGS
DS750687
11 Items

Data sheet

Matériau du segment
Revêtement molybdène
Style
De rechange
Marque
HASTINGS
Référence fournisseur
WG1010306|2M4942
Nom du produit
Jeu de segments de piston
Unités
Lot
Alésage
3,750"
Alésage - surdimensionné
Standard
