Replacement Piston Rings
search
  • Replacement Piston Rings

Replacement Piston Rings

€17.01
Tax included

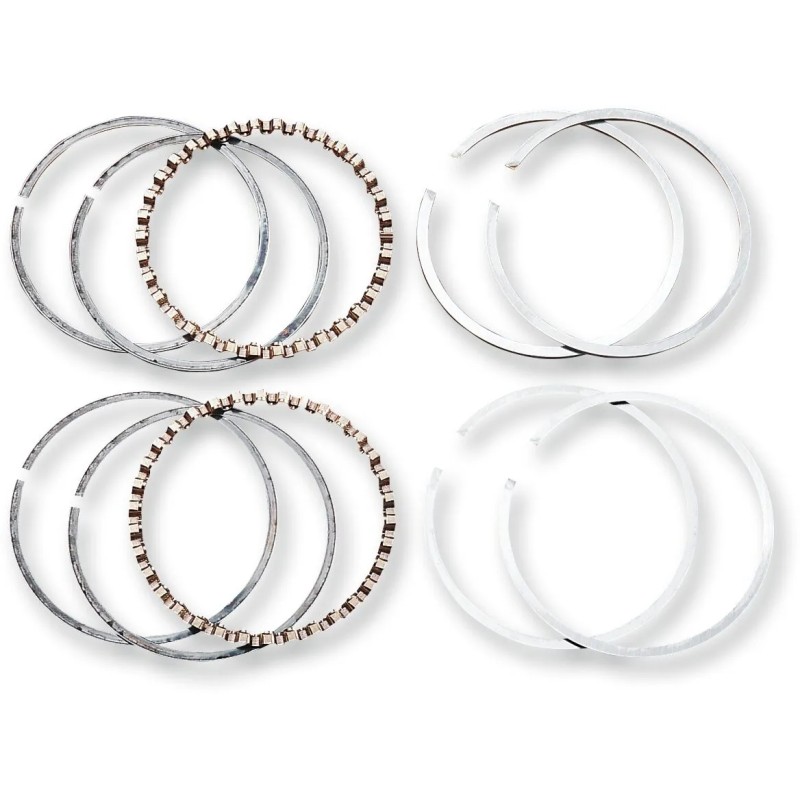

Made in the USA: includes top Barrel‑Face compression rings, reverse‑twist tapered‑face secondary rings and three‑piece Flex Vent oil control rings (four steel rails, two expanders) for improved heat transfer, side sealing and oil control. Supplied for two pistons; maintain the specified ring end gap.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Includes top compression rings, secondary compression rings, and oil scraper rings.
  • The top compression ring features a barrel-face profile for improved sealing.
  • Designed to facilitate thermal transfer between the piston and the cylinder wall, thereby improving heat dissipation.
  • Controls combustion chamber gases to allow the piston to transfer the energy of expanding gases to the crankshaft.
  • The second compression ring has a conical face with reverse twist for increased sealing efficiency.
  • Promotes lateral sealing and prevents oil from passing under and behind the ring, contributing to improved oil economy.
  • Includes a reverse-rotation expander ring with a machined conical face, reproducing the lower scraping edge of a positive-rotation torsion ring.
  • Flex Vent oil scraper rings in a three-piece configuration for improved performance.
  • The three-piece design allows for low-section rails, offering better bore conformity.
  • Provides even pressure thanks to four steel rails and two expanders for optimal oil control.
  • Made in the USA.
  • Because of KB pistons' thermal conductivity and design, special attention must be paid to the top ring end gap; please read the provided instructions for correct installation.
  • The kit includes enough rings for two pistons, unless otherwise indicated.
  • Configuration: two rings per groove; for the oil rails, there will be two rail rings per expander.
HASTINGS
DS750653
8 Items

Data sheet

Matériau du segment
Revêtement molybdène
Marque
HASTINGS
Référence fournisseur
WG1010325|2M6164005
Nom du produit
Jeu de segments de piston
Unités
Lot
Alésage
3,498"
Alésage - surdimensionné
+0,005"
