Replacement Piston Rings
search
  • Replacement Piston Rings

Replacement Piston Rings

€85.29
Tax included

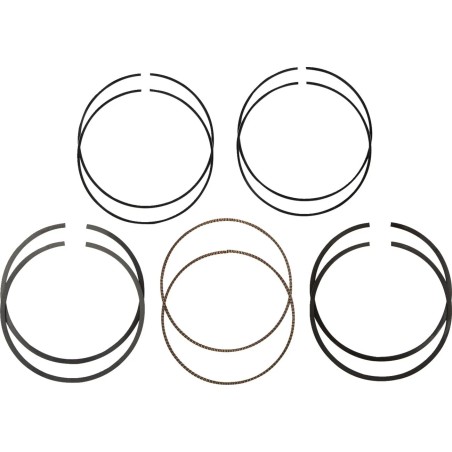

Piston ring set for two pistons. Includes top compression rings (Barrel Face, PVD-coated), Napier second rings, and Three-Piece Flex Vent oil rings — improving heat transfer between piston and cylinder and gas control. Three-piece construction with thin rails, four steel rails and two expanders for uniform pressure and better oil control; machined inverted torsion ring for lateral sealing. Made in the USA.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Includes top compression rings, secondary compression rings, and oil scraper rings
  • Top compression rings with a convex (Barrel Face) profile
  • Coating applied by PVD (Physical Vapor Deposition)
  • Designed to facilitate heat transfer between the piston and the cylinder wall
  • Controls combustion chamber gases to allow the piston to transfer the energy of the expanding gases to the crankshaft
  • The secondary compression rings are Napier-style
  • A reverse-twist ring, with a machined tapered face, replicates the lower outer-diameter (OD) scraper edge of a positive-twist ring
  • Promotes side sealing by preventing oil from passing beneath or behind the ring, contributing to reduced oil consumption
  • The oil scraper rings are Three-Piece Flex Vent type
  • Three-piece design allows the use of low-section rails for better bore conformity
  • Even pressure maintained by four steel rails and two expanders for optimal oil control
  • Made in the USA
  • Includes enough rings to outfit two pistons
  • Arrangement: two rings per groove, except for the rails where there are two rail segments per expander segment
HASTINGS
09120964
6 Items

Data sheet

Taille du piston
+0,010"
Marque
HASTINGS
Référence fournisseur
WG2270435|2C523225
Nom du produit
Jeu de segments de piston
Type
De rechange
Unités
Lot
Alésage
4,000"
Cylindrée
114"
