Replacement Piston Rings
search
  • Replacement Piston Rings

Replacement Piston Rings

€74.07
Tax included

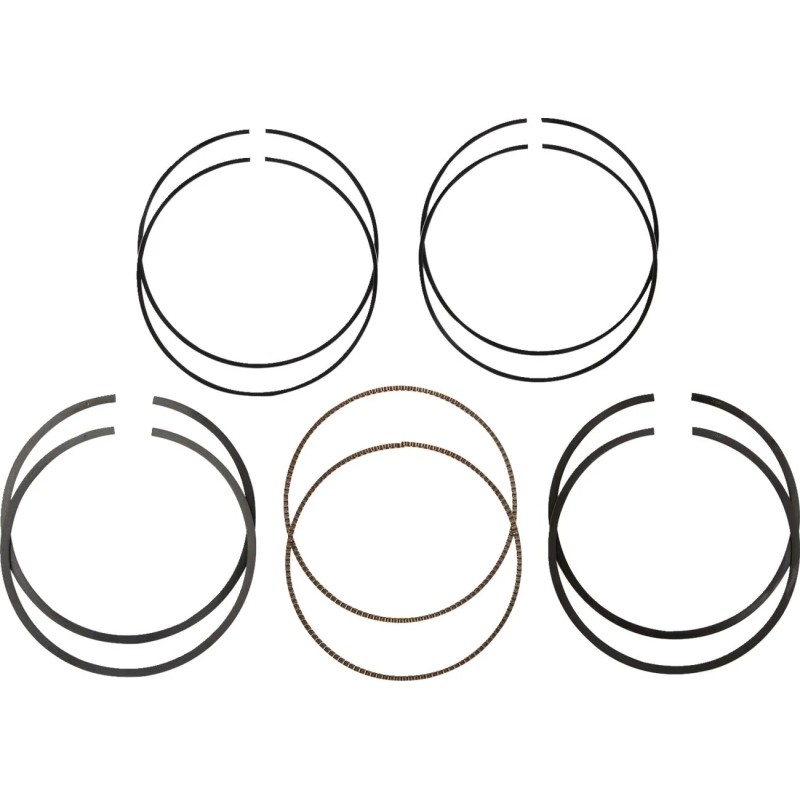

Kit for two pistons including upper compression rings (barrel-face), Napier-style second rings, and Three-Piece Flex-Vent oil control rings. PVD coating, reverse-twist tapered-face rings, three-piece construction with four steel rails and two expanders for improved heat transfer, sealing and oil control. Made in the USA.
Quantity
Last items in stock

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Contains the necessary rings: top compression rings, secondary compression rings, and oil control rings.
  • The top compression rings are of the "Barrel Face" type, designed for improved seating and sealing.
  • Surface treated with PVD (Physical Vapor Deposition) coating for increased durability and wear resistance.
  • Designed to facilitate heat transfer between the piston and the cylinder wall, improving heat dissipation.
  • Ensures control of gases in the combustion chamber, allowing the piston to convert the energy of expanding gases into crankshaft motion.
  • The secondary compression rings are of the Napier type, providing additional sealing and gas control.
  • Reverse-twist ring with a machined conical face that reproduces the outer lower (OD) scraping edge of a positive-twist ring for improved scraping function.
  • Promotes lateral sealing by preventing oil from passing under or behind the ring, thereby contributing to reduced oil consumption.
  • The oil control rings are of the Three-Piece Flex Vent type, designed for optimal scraping efficiency.
  • Three-piece architecture allows the use of low-section rails for better conformity to the cylinder bore.
  • Provides uniform pressure via four steel rails and two expanders, ensuring precise oil control.
  • Manufactured in the United States, ensuring rigorous production standards.
  • The kit includes enough rings to outfit two pistons, ready for installation.
  • Parts configuration: two rings per groove, except for the rails where there are two rail segments per expander segment.
  • Assembly designed to offer an optimal balance between gas sealing, oil control, and dimensional conformity.
HASTINGS
09120963
1 Item

Data sheet

Taille du piston
+0,005"
Marque
HASTINGS
Référence fournisseur
WG2270434|2C523213
Nom du produit
Jeu de segments de piston
Type
De rechange
Unités
Lot
Alésage
4,000"
Cylindrée
114"
