Replacement Piston Rings
search
  • Replacement Piston Rings

Replacement Piston Rings

€61.70
Tax included

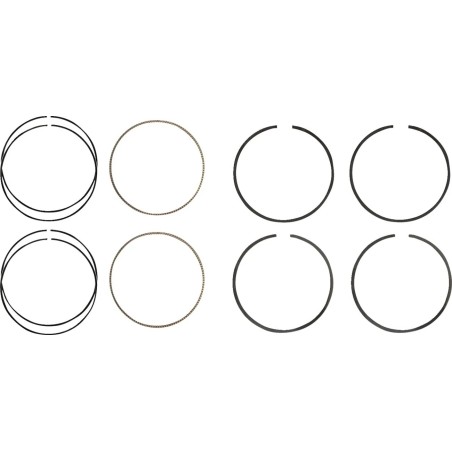

Piston ring kit for two pistons (Made in the USA) including Barrel Face top compression rings, Napier second rings, and Three Piece Flex Vent oil scraper rings. PVD coating, reverse-twist cone-faced ring, four steel rails and two expanders for optimal side sealing, improved heat transfer, and enhanced oil and gas control.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Includes top compression rings, secondary compression rings and oil control rings.
  • Barrel Face-style top compression rings for optimized sealing and wear.
  • PVD (Physical Vapor Deposition) coating for increased durability and wear resistance.
  • Designed to facilitate heat transfer between the piston and the cylinder wall, improving heat dissipation.
  • Provides control of combustion chamber gases, allowing the piston to transfer the energy of expanding gases to the crankshaft.
  • Secondary compression rings are Napier-type, offering enhanced sealing performance.
  • A reverse-torsion ring with a machined conical face reproduces the outer lower scraper edge (OD) of a positive-torsion ring.
  • This design promotes lateral sealing, preventing oil from passing under or behind the ring for reduced oil consumption.
  • Oil control rings are Three Piece Flex Vent-type for effective oil control.
  • Three-piece design allows for low-profile rails, ensuring better conformity to the cylinder bore.
  • Uniform pressure guaranteed by four steel rails and two expanders, ensuring optimal oil control.
  • Made in the USA to high manufacturing standards.
  • The kit includes enough rings to equip two pistons.
  • Two rings per groove, except for the rails: each expander segment receives two rail segments.
HASTINGS
09120962
4 Items

Data sheet

Taille du piston
Standard
Marque
HASTINGS
Référence fournisseur
WG2197601|2C5232
Nom du produit
Jeu de segments de piston
Type
De rechange
Unités
Lot
Alésage
4,000"
Cylindrée
114"
