Replacement Piston Rings

€80.37
Tax included

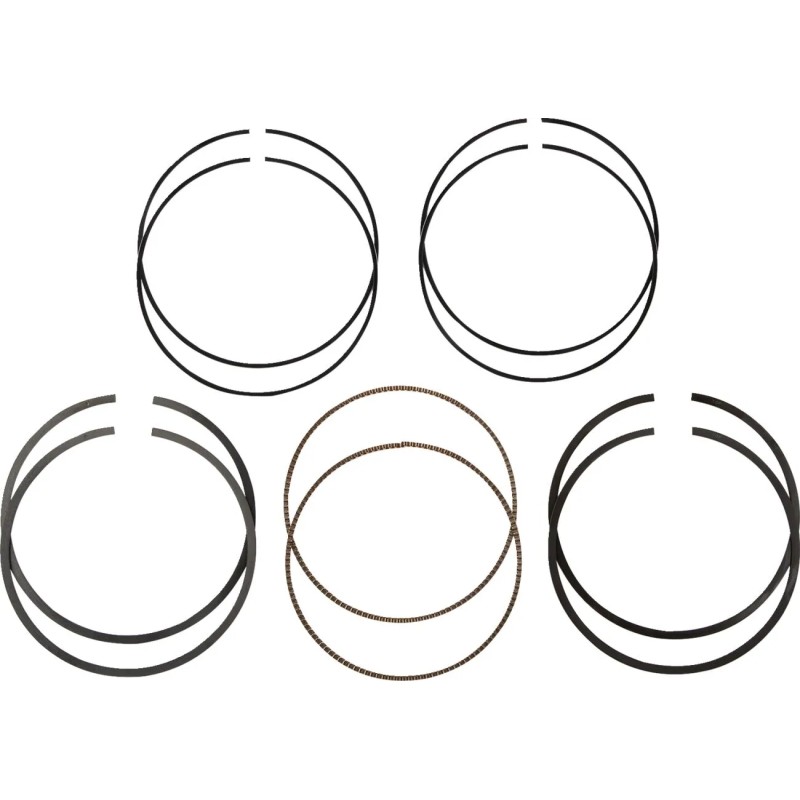

Piston ring set for two pistons, including barrel-face upper compression rings, Napier second rings, and three-piece Flex Vent oil rings. PVD coating, machined inverted-torsion expander ring, four steel rails and two expanders for even pressure; improves heat transfer, sealing and oil consumption. Made in the USA.
Quantity
Last items in stock

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Complete kit including top compression rings, secondary compression rings, and oil scraper rings
  • Top compression rings with a Barrel Face profile
  • Coating applied by PVD (Physical Vapor Deposition) process
  • Improves thermal transfer between the piston and the cylinder wall
  • Controls gases in the combustion chamber to allow the piston to transfer the energy of expanding gases to the crankshaft
  • The secondary compression rings are Napier type
  • Inverted-tension ring with a machined conical face reproducing the lower scraper edge on the outer diameter (OD) of a positive-tension ring
  • Promotes lateral sealing by preventing oil from passing under or behind the ring, which reduces oil consumption
  • The oil scraper rings are of the Three-Piece Flex Vent type
  • Three-piece design allowing thin-section rails for better bore conformity
  • Uniform pressure ensured by four steel rails and two expanders, providing optimal oil control
  • Made in the United States
  • The kit includes enough rings to outfit two pistons
  • Two rings per groove, except for the rails: two rail segments for each expander
HASTINGS
09120961
2 Items

Data sheet

Taille du piston
+0,010"
Marque
HASTINGS
Référence fournisseur
WG2270432|2C523125
Nom du produit
Jeu de segments de piston
Type
De rechange
Unités
Lot
Alésage
3,937"
Cylindrée
107"
