Replacement Piston Rings

€82.43
Tax included

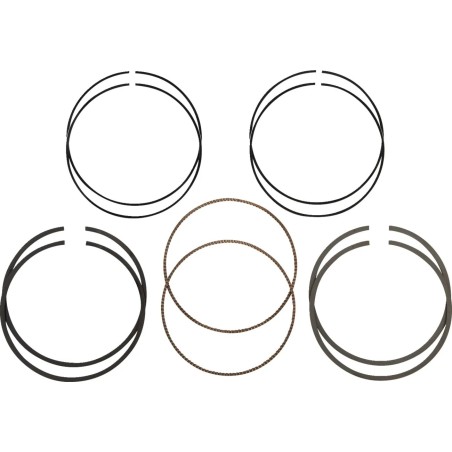

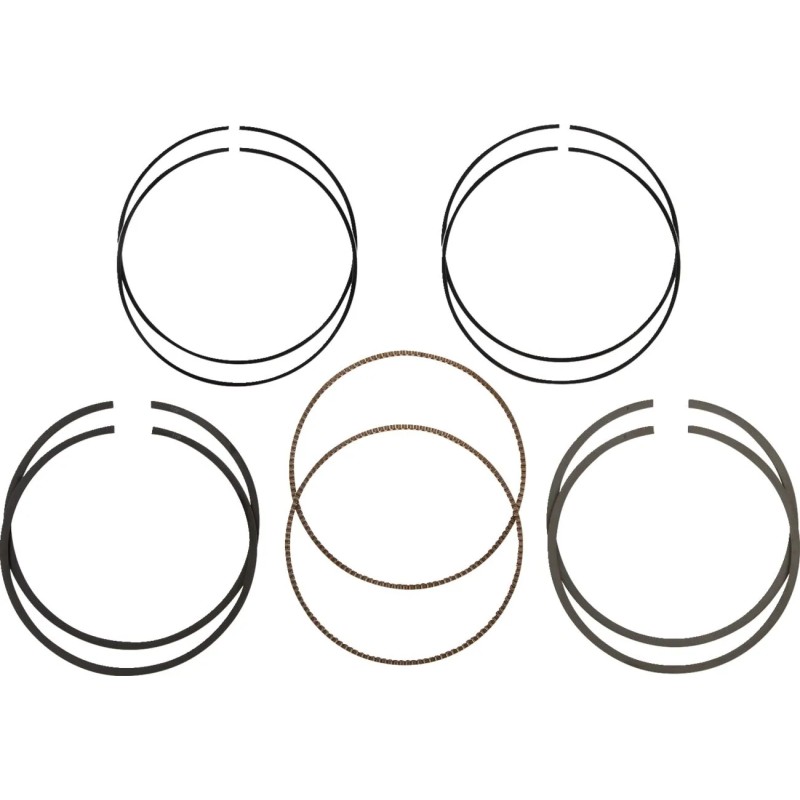

Piston ring set (sufficient for two pistons) includes barrel-face PVD-coated top compression rings, Napier second rings, and Three-Piece Flex Vent oil-control rings. Three-piece design with an inverted-torsion, cone-faced ring for improved side sealing and optimized heat transfer; features four steel rails and two expanders. Made in the USA.
Quantity
Last items in stock

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Includes top compression rings, secondary compression rings, and oil control rings
  • Top compression rings of the Barrel Face type
  • Coating applied by PVD (Physical Vapor Deposition) process
  • Improves heat transfer between the piston and the cylinder wall
  • Controls combustion chamber gases, allowing the piston to transmit the energy of the expanding gases to the crankshaft
  • Secondary compression rings are Napier type
  • Reverse-twist expander with machined conical face reproducing the lower outer oil-scraping edge (OD) of a positive-twist expander
  • Enhances lateral sealing, preventing oil from passing under or behind the ring, resulting in reduced oil consumption
  • The oil control rings are Three-Piece Flex Vent type
  • Three-piece design allowing thin-section rails for better fit to the cylinder bore
  • Ensures even pressure thanks to four steel rails and two expanders, guaranteeing optimal oil control
  • Made in the USA
  • Includes enough rings to fit two pistons
  • Two rings per groove, except for the rails: each expander is supplied with two rail segments
HASTINGS
09120960
2 Items

Data sheet

Taille du piston
+0,005"
+0,005"
Marque
HASTINGS
Référence fournisseur
WG2270431|2C523113
Nom du produit
Jeu de segments de piston
Type
De rechange
Unités
Lot
Alésage
3,937"
Cylindrée
107"
