Replacement Piston Rings
search
  • Replacement Piston Rings

Replacement Piston Rings

€47.55
Tax included

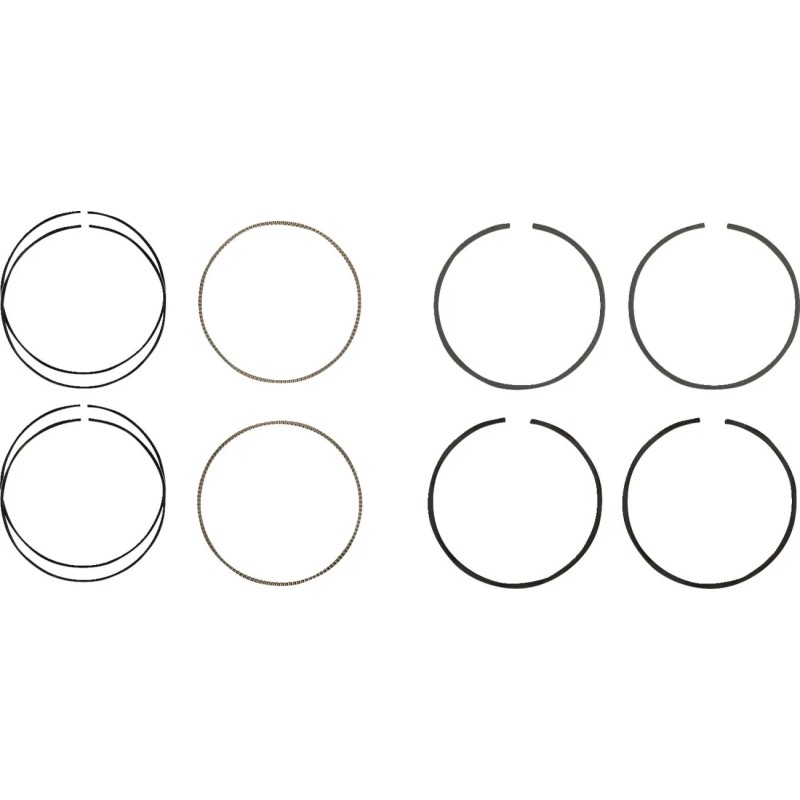

Piston ring set for two pistons: top compression rings are barrel-faced with PVD coating, second rings are Napier type, and Three-Piece Flex-Vent oil rings. 3-piece design with thin rails — four steel rails and two expanders for uniform oil control — and a conical reverse-twist ring providing sealing and heat transfer. Made in the USA.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Includes top compression rings, secondary compression rings, and oil scraper rings.
  • Top compression rings with a Barrel Face profile.
  • Coating applied by PVD (Physical Vapor Deposition).
  • Improves heat transfer between the piston and the cylinder wall.
  • Provides gas control in the combustion chamber, allowing the piston to transfer the energy of the expanding gases to the crankshaft.
  • The secondary compression rings are Napier-type.
  • Reverse-twist ring with a machined tapered face reproducing the lower outer (OD) scraper edge of a positive torsion ring.
  • Optimizes side sealing by preventing oil from passing under or behind the ring, helping to reduce oil consumption.
  • The oil scraper rings are Three Piece Flex Vent type.
  • Three-piece design allowing low-section rails for better bore conformity.
  • Uniform pressure ensured by four steel rails and two expanders, guaranteeing optimal oil control.
  • Made in the USA.
  • Supplied with enough rings to equip two pistons.
  • Two rings per groove, except for the rails: each rail expander contains two rail segments.
HASTINGS
09120959
4 Items

Data sheet

Taille du piston
Standard
Marque
HASTINGS
Référence fournisseur
WG2197600|2C5231
Nom du produit
Jeu de segments de piston
Type
De rechange
Unités
Lot
Alésage
3,937"
Cylindrée
107"
