Replacement Piston Rings
search
  • Replacement Piston Rings

Replacement Piston Rings

€28.82
Tax included

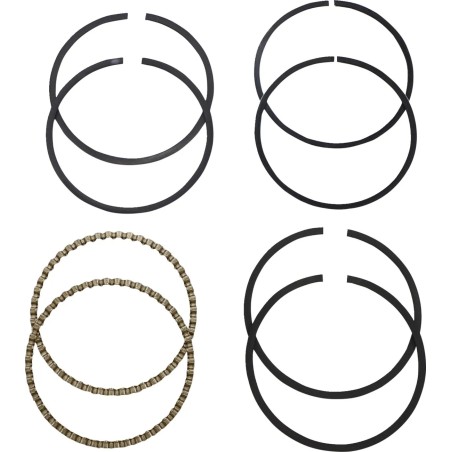

Three-piece piston ring kit (barrel-faced upper and second compression rings and Flex Vent oil scrapers), made in the USA. Thin oil-control assembly with four steel rails and two expanders for optimal oil control, improved sealing and piston-to-cylinder heat transfer. Supplied for 2 pistons. Observe the top ring end-gap and read the instructions.
Quantity
Last items in stock

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Includes top compression rings, second compression rings, and oil scraper rings
  • Barrel-face type top compression ring
  • Promotes heat transfer between the piston and the cylinder wall
  • Controls combustion chamber gases, allowing the piston to convert the energy of expanding gases into crankshaft rotation
  • Second taper-faced compression ring with reverse twist
  • Improves side sealing by preventing oil from passing under and behind the ring, for reduced oil consumption
  • Reverse-rotation ring with machined taper face, replicating the lower scraping edge of a positive-rotation torsional ring
  • Oil scraper rings in a three-piece Flex Vent design
  • Three-piece design producing thin-section rails for better bore conformity
  • Provides even pressure with four steel rails and two expanders, for optimal oil control
  • Made in the United States
  • Due to the thermal conductivity and design of KB pistons, special attention must be paid to the top ring end gap; please read the included instructions for proper installation
  • Includes enough rings for two pistons, unless otherwise indicated
  • Two rings per groove, except for the oil rails where there are two rail rings per expander
HASTINGS
09120926
1 Item

Data sheet

Matériau du segment
Revêtement molybdène
Marque
HASTINGS
Référence fournisseur
WG1145315|2M6164040
Nom du produit
Jeu de segments de piston
Unités
Lot
Alésage
3,498"
Alésage - surdimensionné
+0,040"
