Replacement Piston Rings

€28.51
Tax included

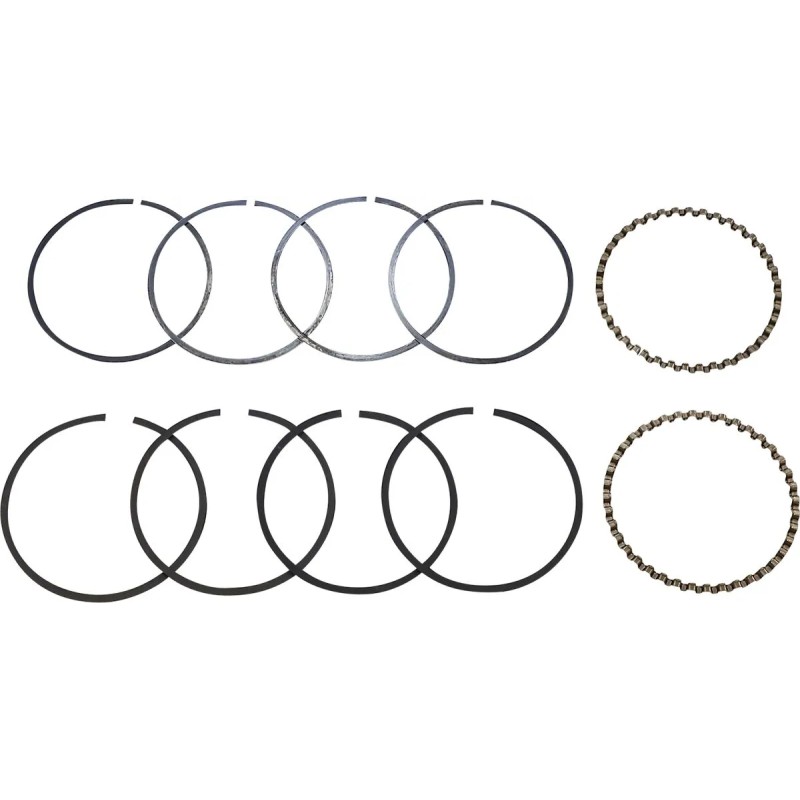

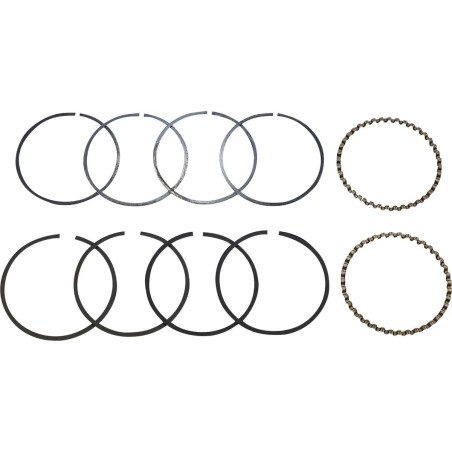

Piston ring set made in the USA for two pistons: top compression rings (Barrel Face), Napier second rings, and 3-piece Flex Vent oil scrapers. Low‑profile design with tapered face and reverse‑twist expander for improved heat transfer, side sealing and consistent oil control (4 rails, 2 expanders).
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Includes top compression rings, secondary compression rings, and oil scraper rings
  • Top compression ring with a Barrel-Face profile for optimized contact with the cylinder wall
  • Promotes heat transfer between the piston and the cylinder wall for improved heat dissipation
  • Controls combustion chamber gases, allowing the piston to transfer the energy of the expanding gases to the crankshaft
  • The second compression ring is of the Napier type
  • Reverse-twist ring with a machined tapered face that reproduces the lower scraping edge of a positive-twist ring
  • Improves side sealing to prevent oil from passing under and behind the ring, ensuring better oil control
  • Flex Vent oil scraper rings in a three-piece design
  • Three-piece design allows low-section rails for better bore conformity
  • Ensures even pressure thanks to four steel rails and two expanders for optimal oil control
  • Made in the USA
  • Includes enough rings for two pistons (unless otherwise specified)
  • Two rings per groove, except for the rails where there are two rail rings per expander ring
HASTINGS
09120925
4 Items

Data sheet

Marque
HASTINGS
Référence fournisseur
WG1297672|2M6482080
Nom du produit
Segment
Unités
Lot
