Replacement Piston Rings
search
  • Replacement Piston Rings

Replacement Piston Rings

€33.00
Tax included

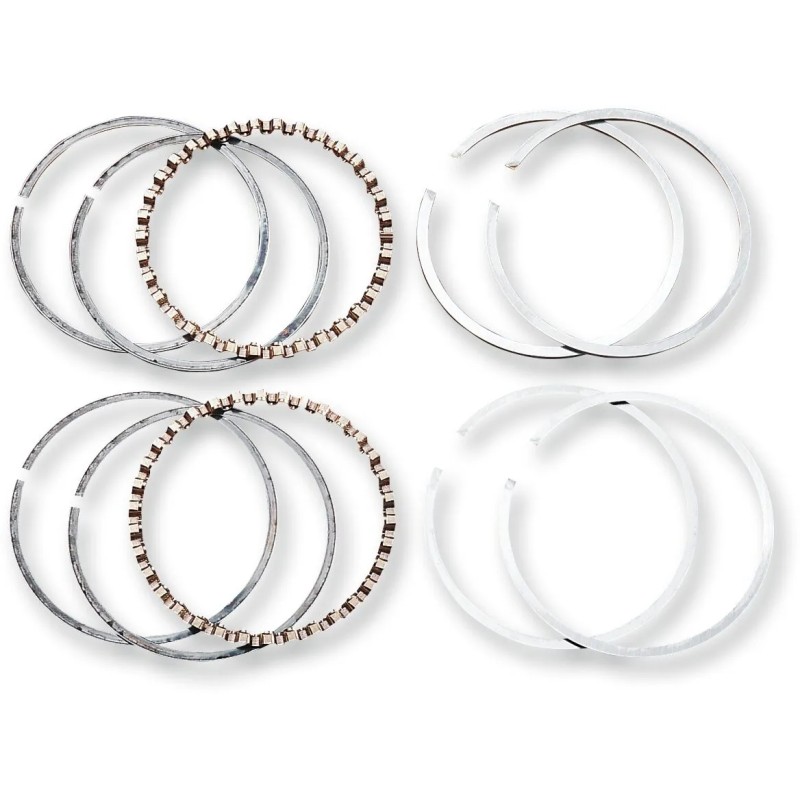

Piston ring set for two pistons: top compression rings (Barrel Face), second rings (Napier), and a reverse-twist, tapered-face ring that enhances heat transfer and side sealing, plus three-piece Flex-Vent oil rings with four steel rails and two expanders for optimal oil control. Made in the USA.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Contains complete sets of rings: top compression rings, secondary compression rings and oil scraper rings.
  • The top compression rings are machined with a "Barrel Face" profile for improved seating.
  • Designed to enhance heat transfer between the piston and the cylinder wall, aiding heat dissipation.
  • Ensures control of gases from the combustion chamber so the piston can transfer the energy of expanding gases to the crankshaft.
  • The second compression ring adopts a Napier profile for optimized sealing and performance.
  • The ring features a reverse-twist design with a machined tapered face, recreating the lower scraping edge of a positive-twist ring.
  • This design promotes lateral sealing, preventing oil from passing under and behind the ring and improving oil management.
  • The oil scraper rings are three-piece "Flex Vent" type for effective oil control.
  • The three-piece design allows for low-section rails, providing better conformity to the bore.
  • Four steel rails and two expanders provide even pressure across the rails for optimal oil control.
  • Product made in the United States.
  • The kit includes enough rings to equip two pistons, unless otherwise noted.
  • Generally, two rings are supplied per groove; for the rails, there are two rail segments per expander.
HASTINGS
09120469
4 Items

Data sheet

Matériau du segment
Revêtement molybdène
Style
De rechange
Marque
HASTINGS
Référence fournisseur
WG1254778|2M4805010
Nom du produit
Jeu de segments de piston
Unités
Lot
Alésage
3,750"
Alésage - surdimensionné
+0,010 pouce
+0,010"
