Replacement Piston Rings
search
  • Replacement Piston Rings

Replacement Piston Rings

€40.25
Tax included

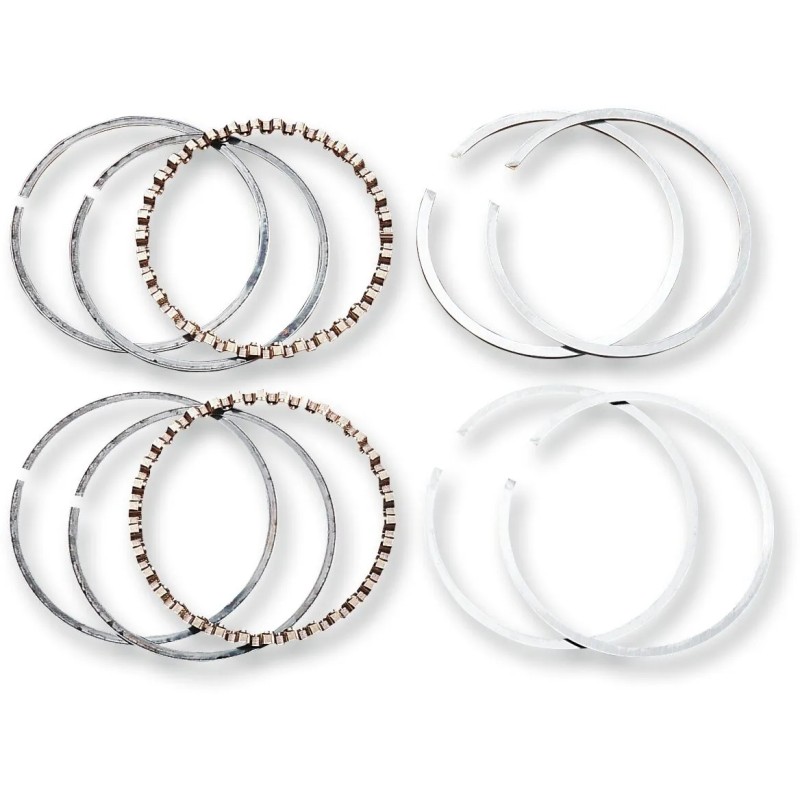

Piston ring kit for two pistons, made in the USA, including Barrel Face–profile top compression rings, Napier second rings, and three-piece Flex Vent oil rings. Thin-rail design with four steel rails and two expanders, promoting heat transfer, side sealing, and improved oil control.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Includes top compression rings, secondary compression rings, and oil scraper rings.
  • Top compression rings designed with a Barrel Face profile.
  • Optimizes heat transfer between the piston and the cylinder wall.
  • Controls combustion chamber gases to allow the piston to transfer the energy of the expanding gases to the crankshaft.
  • The second compression ring is Napier-style.
  • Reverse-twist ring with a machined conical face that reproduces the lower scraper edge of a positive-twist ring.
  • Improves side sealing to prevent oil from passing under and behind the ring, ensuring better oil control.
  • Three-piece Flex-Vent type oil scraper rings.
  • Three-piece design produces low-section rails for improved bore fit.
  • Ensures uniform pressure thanks to four steel rails and two expanders, for optimal oil control.
  • Made in the USA.
  • Supply includes enough rings to equip two pistons, unless otherwise specified.
  • Two rings per groove, except for the rails where there are two rail segments per expander.
HASTINGS
09120467
13 Items

Data sheet

Matériau du segment
Revêtement molybdène
Style
De rechange
Marque
HASTINGS
Référence fournisseur
WG1155190|2M4805
Nom du produit
Jeu de segments de piston
Unités
Lot
Alésage
3,750"
Alésage - surdimensionné
Standard
