MVX Series Analog Gauge System
search
  • MVX Series Analog Gauge System

MVX Series Analog Gauge System

€714.89
€643.40 Save 10%
Tax included

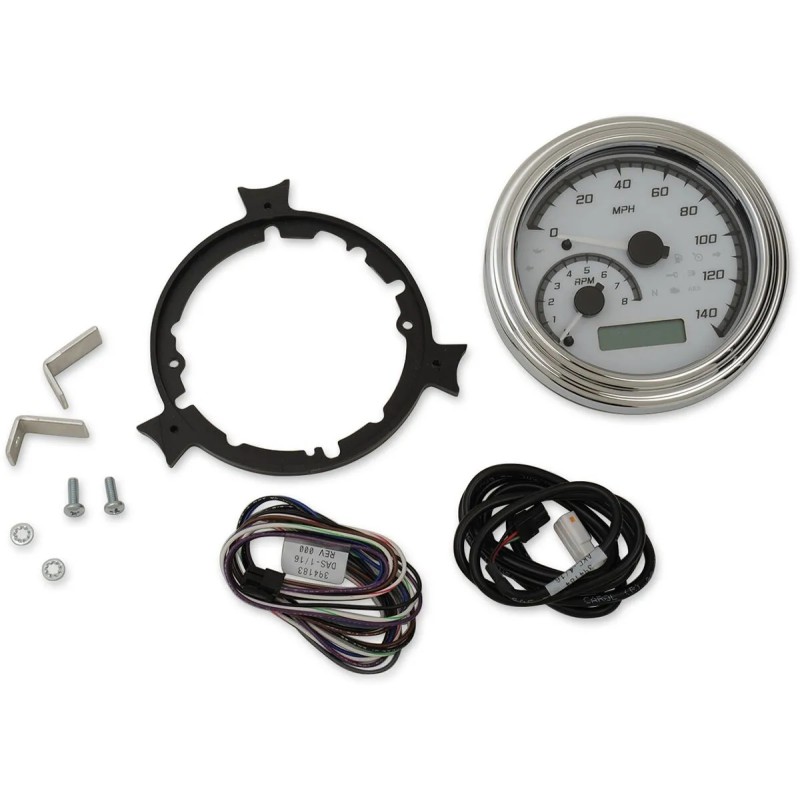

Complete dashboard: 140 mph speedometer, 8,000 rpm tachometer, odometer, two resettable trip meters, hour meter and 12-hour clock. Voltage and low-oil-pressure alerts, cylinder-head temperature sensor, gear indicator for 3–7 gears. Customizable colors (7 or 31 depending on model), performance functions, cut-and-splice wiring, 4-1/4" housing.
Quantity
Out-of-Stock

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Complete gauge set with a refined design including a speedometer graduated to 140 mph, a tachometer, a main odometer, two resettable trip meters and auxiliary warning lights (turn signals, high beam, neutral, low oil pressure alert).
  • Version compatible with '99–'03 models: choice of seven colors for the needle, backlighting and LCD display (red, green, blue, turquoise, magenta, amber, or white).
  • Version compatible with '11–'22 models: selectable from 31 colors to customize the needle, backlighting and LCD display.
  • Tachometer graduated to 8,000 rpm, featuring an adjustable shift point and a digital readout for precise engine speed reference.
  • Resettable mileage function for pre-service tracking, with a programmable alert (configurable countdown) and an hour meter for detailed usage tracking.
  • Built-in clock displayed in 12-hour format for quick reference while riding.
  • On-board voltage display with an under-voltage alert to help prevent electrical issues.
  • Supports cylinder head temperature sensor, if the motorcycle was originally equipped with this sensor.
  • Oil pressure sending unit not included — sold separately under part numbers 2212-0513 or DS-250019.
  • 7-gear position indicator, compatible with transmissions having 3 to 7 gears.
  • Security system indicator light for clear visibility of the immobilizer/anti-theft status.
  • Compatible with automatic turn-signal cancellation systems for seamless integration with the existing wiring harness.
  • Preheat indicator and check-engine alert for start-up diagnostics and safety.
  • Onboard performance calculation capabilities: 0–60 mph times, top speed, recall of maximum RPM reached, as well as quarter-mile time and speed.
  • Installation requires cutting and splicing wires — not compatible with a direct plug-and-play connection.
  • Installation dimensions: housing diameter 4-1/4" and bezel diameter 4-5/8".
DAKOTA DIGITAL
22120509

Data sheet

Couleur du boîtier
Chrome
Calibrage
0 km/h - 225 km/h, 0 tr/min - 8 000 tr/min
0 km/h - 225 km/h, 0 tr/min - 8 000 tr/min
0 mph - 140 mph, 0 tr/min - 8 000 tr/min
0 mph - 140 mph, 0 tr/min - 8 000 tr/min
0 tr/min - 8 000 tr/min, 0 km/h - 225 km/h (0 mph - 140 mph)
0 tr/min - 8 000 tr/min, 0 km/h - 225 km/h (0 mph - 140 mph)
Couleur du cadran
Blanc, Gris
Diamètre extérieur
12,7 cm (5")
Marque
DAKOTA DIGITAL
Référence fournisseur
MVX-2004-WG-C
Caractéristiques
Éclairage de fond, Clignotants
Modèle
MVX Series
Nom du produit
Indicateur
Type
Compteur de vitesses analogique
Unités
Kit
