MVX Series Analog Gauge System
search
  • MVX Series Analog Gauge System
  • MVX Series Analog Gauge System

MVX Series Analog Gauge System

€714.89
€643.40 Save 10%
Tax included

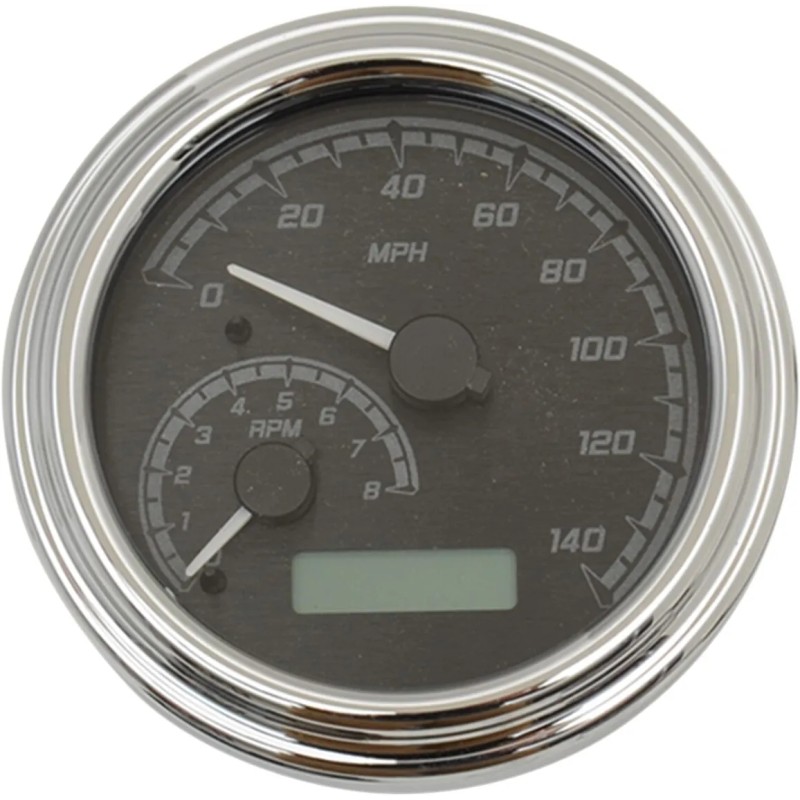

140 mph speedometer with 8,000 rpm tachometer, odometer, two resettable trip meters, indicator lights (turn signals, headlights, neutral, oil), 12-hour clock, voltage display with alert, cylinder head temperature sensor (if present), oil pressure unit sold separately, gear indicator (3–7), security/preheat indicator, performance measurements, selectable colors ('99–'03: 7, '11–'22: 31). Cut-and-splice wiring. Case 4 1/4", bezel 4 5/8".
Quantity
Out-of-Stock

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Speedometer graduated up to 140 mph, tachometer, main odometer, two resettable trip meters and additional indicator lights (turn signals, headlight, neutral, low oil pressure) combined in a neat, integrated design.
  • Version for 1999–2003 models: choice of 7 colors for the needle, backlight and LCD display (red, green, blue, turquoise, magenta, amber or white).
  • Version for 2011–2022 models: selection of 31 colors for the needle, backlight and LCD display.
  • Tachometer limited to 8,000 rpm with an adjustable shift point and digital readout for precise viewing.
  • Service mileage function resettable before maintenance with a programmable alert (configurable countdown) and recording of operating hours.
  • 12-hour clock function integrated into the display.
  • Battery voltage display with a low-voltage alert.
  • Input for cylinder head temperature sensor, if the motorcycle is equipped with an OEM sensor.
  • Oil pressure sending unit sold separately (part numbers 2212-0513 or DS-250019).
  • Gear position indicator for up to 7 gears; compatible with 3- to 7-speed transmissions.
  • Integrated security system indicator to display anti-theft system alerts.
  • Compatible with automatic turn-signal canceling systems.
  • Preheat and/or engine check indicator function to inform the rider.
  • Onboard performance calculation tools: measurements such as 0–60 mph, top speed, recall of maximum rpm reached, as well as quarter-mile time and speed.
  • Electrical installation requires cutting and splicing wires; not compatible with a direct plug-and-play connection.
  • Case diameter: 4-1/4"; bezel diameter: 4-5/8".
DAKOTA DIGITAL
22120505

Data sheet

Couleur du boîtier
Chrome
Calibrage
0 km/h - 225 km/h, 0 tr/min - 8 000 tr/min
0 km/h - 225 km/h, 0 tr/min - 8 000 tr/min
0 mph - 140 mph, 0 tr/min - 8 000 tr/min
0 mph - 140 mph, 0 tr/min - 8 000 tr/min
0 tr/min - 8 000 tr/min, 0 km/h - 225 km/h (0 mph - 140 mph)
0 tr/min - 8 000 tr/min, 0 km/h - 225 km/h (0 mph - 140 mph)
Couleur du cadran
Noir, Gris
Diamètre extérieur
12,7 cm (5")
Marque
DAKOTA DIGITAL
Référence fournisseur
MVX-2004-KG-C
Caractéristiques
Éclairage de fond, Clignotants
Modèle
MVX Series
Nom du produit
Indicateur
Type
Compteur de vitesses analogique
Unités
Kit
