MVX Series Analog Gauge System
search
  • MVX Series Analog Gauge System

MVX Series Analog Gauge System

€714.89
€643.40 Save 10%
Tax included

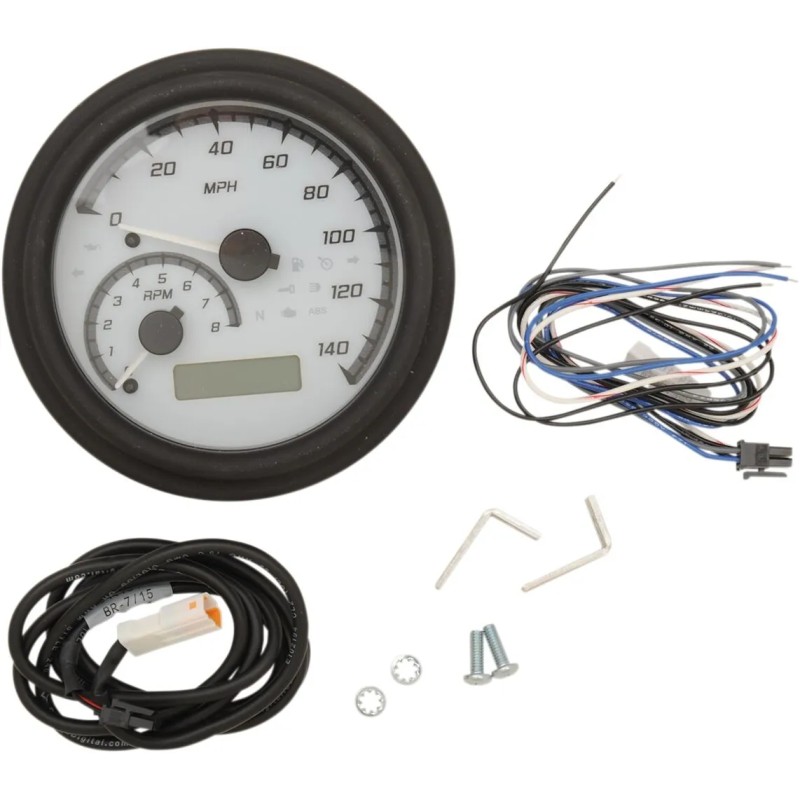

4-1/4" instrument unit (4-5/8" bezel): 140 mph speedometer, 8,000 rpm tachometer, odometer and two resettable trip meters, indicator lights (turn signals, headlight, neutral, oil pressure), 3–7 gear position indicator, color selection (7 for '99–'03, 31 for '11–'22), voltage alert, 12-hour clock, hour meter, cylinder head temperature sensor, performance functions; cut-and-splice installation required.
Quantity
Last items in stock

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Speedometer up to 140 mph, tachometer, odometer and two resettable trip meters, with supplementary indicator lights (turn signals, high beam, neutral, low oil pressure) presented in a stylishly designed cluster
  • Version for '99-'03 models: seven selectable colors for the needle, backlight and LCD (red, green, blue, turquoise, magenta, amber or white)
  • Version for '11-'22 models: 31 selectable colors for the needle, backlight and LCD display
  • 8,000 rpm tachometer with adjustable shift threshold and digital readout
  • Resettable mileage counter for service interval tracking, with alert (configurable countdown) and built-in hour meter
  • 12-hour clock function
  • Battery voltage display with low-voltage alert
  • Supports cylinder head temperature sensor (if the motorcycle is originally equipped)
  • Oil pressure sending unit sold separately (part no. 2212-0513 or DS-250019)
  • Gear position indicator up to 7 speeds, compatible with 3- to 7-speed transmissions
  • Security system indicator
  • Compatible with automatic turn-signal canceling
  • Preheat / engine check indicator function
  • Performance calculations available: 0–60, top speed, max-RPM recall, quarter-mile time and speed
  • Electrical installation requires cutting and splicing wires; not plug-and-play compatible
  • Dimensions: case diameter 4-1/4" and bezel diameter 4-5/8"
DAKOTA DIGITAL
22120583
1 Item

Data sheet

Couleur du boîtier
Black
Calibrage
0 km/h - 225 km/h, 0 tr/min - 8 000 tr/min
0 km/h - 225 km/h, 0 tr/min - 8 000 tr/min
0 mph - 140 mph, 0 tr/min - 8 000 tr/min
0 mph - 140 mph, 0 tr/min - 8 000 tr/min
0 tr/min - 8 000 tr/min, 0 km/h - 225 km/h (0 mph - 140 mph)
0 tr/min - 8 000 tr/min, 0 km/h - 225 km/h (0 mph - 140 mph)
Couleur du cadran
Blanc, Gris
Diamètre extérieur
11,8 cm (4-5/8")
Marque
DAKOTA DIGITAL
Référence fournisseur
MVX-2011-WG-K
Caractéristiques
Éclairage de fond, 31 couleurs sélectionnables
Modèle
MVX Series
Nom du produit
Indicateur
Type
Compteur de vitesses analogique
Unités
Pièce
