MVX Series Analog Gauge System
search
  • MVX Series Analog Gauge System

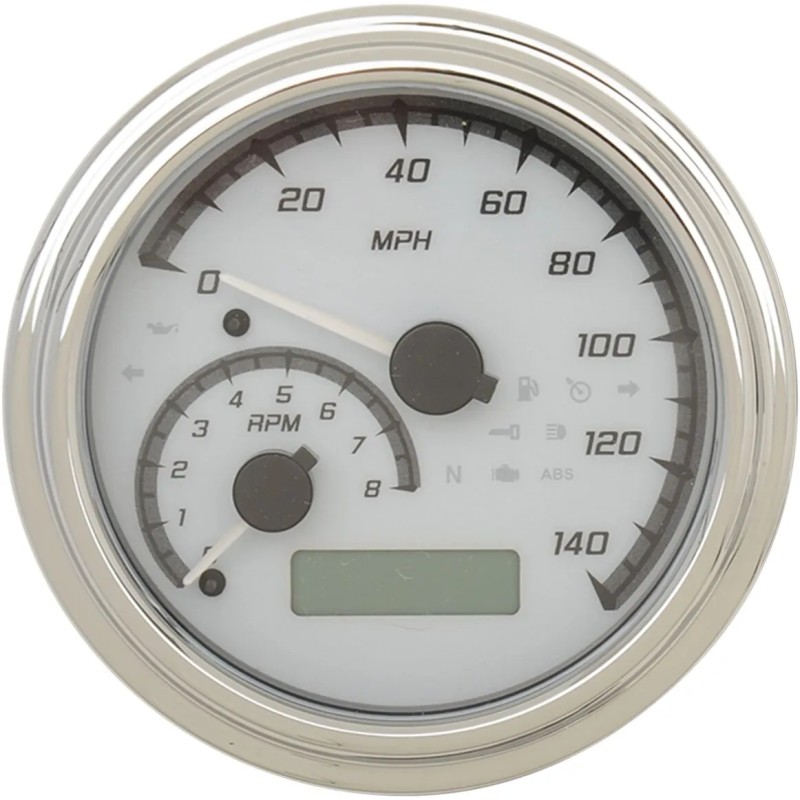

MVX Series Analog Gauge System

€714.89
€643.40 Save 10%
Tax included
Complete dashboard: speedometer up to 140 mph; tachometer to 8,000 rpm (alert); odometer; two trip meters; 12‑hour clock; indicator lights (turn signals, headlight, neutral, oil, security/immobilizer, glow/diagnostic); voltage display; performance calculations. Adjustable colors (7 or 31 depending on model). 3–7 gear indicator. Cylinder‑head temperature probe optional. Oil pressure sensor sold separately. Wiring requires cutting. 4‑1/4" housing.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Speedometer graduated up to 140 mph, integrated tachometer, odometer, two resettable trip meters and additional indicators (turn signals, high beam, neutral, low oil pressure) combined in a neatly designed cluster.
  • Version for '99-'03 models: selection of 7 colors for the needle, backlighting and LCD display (red, green, blue, turquoise, magenta, amber or white).
  • Version for '11-'22 models: extended selection to 31 colors for the needle, backlighting and LCD display, for a fully customizable readout.
  • Tachometer capped at 8,000 rpm, with adjustable shift point and digital RPM display.
  • Resettable mileage-before-service function, with configurable alert (adjustable countdown) and an hour meter for usage tracking.
  • 12-hour clock function integrated directly into the display.
  • Battery voltage display with undervoltage alert to warn of electrical issues.
  • Supports cylinder head temperature sensor, if the vehicle is factory-equipped with this sensor.
  • Oil pressure sending unit not included (sold separately) — compatible part numbers: 2212-0513 or DS-250019.
  • Gear position indicator with 7 positions, compatible with 3- to 7-speed transmissions.
  • Security system indicator integrated into the instrument cluster.
  • Compatible with automatic turn-signal canceling for added comfort and safety.
  • Preheat / engine-check indicator function to signal glow plug operation or engine alerts.
  • Performs performance calculations: 0–60 mph, top speed, recall of maximum RPM reached, as well as quarter-mile (1/4 mile) time and speed.
  • Electrical installation is performed by cutting and splicing wires (cut/splice); the unit is not compatible with a direct plug-and-play connection.
  • Dimensions: case diameter 4-1/4" (4.25") and bezel diameter 4-5/8" (4.625").
DAKOTA DIGITAL
22120582
4 Items

Data sheet

Couleur du boîtier
Chrome
Calibrage
0 km/h - 225 km/h, 0 tr/min - 8 000 tr/min
0 km/h - 225 km/h, 0 tr/min - 8 000 tr/min
0 mph - 140 mph, 0 tr/min - 8 000 tr/min
0 mph - 140 mph, 0 tr/min - 8 000 tr/min
0 tr/min - 8 000 tr/min, 0 km/h - 225 km/h (0 mph - 140 mph)
0 tr/min - 8 000 tr/min, 0 km/h - 225 km/h (0 mph - 140 mph)
Couleur du cadran
Blanc, Gris
Diamètre extérieur
11,8 cm (4-5/8")
Marque
DAKOTA DIGITAL
Référence fournisseur
MVX-2011-WG-C
Caractéristiques
Éclairage de fond, 31 couleurs sélectionnables
Modèle
MVX Series
Nom du produit
Indicateur
Type
Compteur de vitesses analogique
Unités
Pièce
