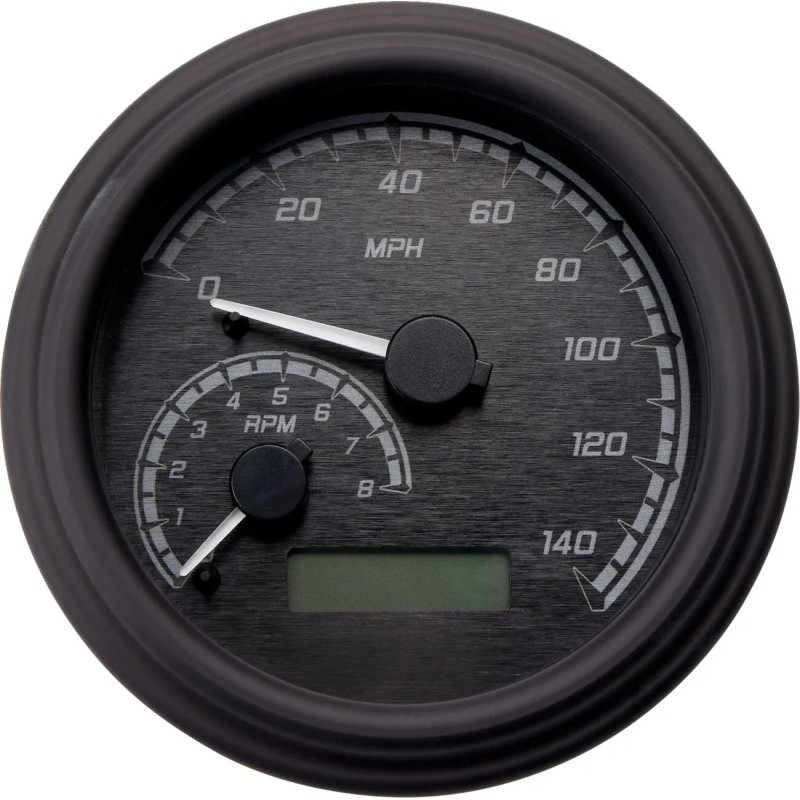

MVX Series Analog Gauge System
search
  • MVX Series Analog Gauge System
  • MVX Series Analog Gauge System

MVX Series Analog Gauge System

€714.89
€643.40 Save 10%
Tax included
Complete 140 mph speedometer with 8,000 rpm tachometer (adjustable threshold), odometer, two resettable trip meters, 12-hour clock, indicator lights (turn signals, headlight, neutral, oil, safety, preheat/engine check), voltage display with alert, cylinder-head temperature sensor, 3–7 gear indicator, performance measurements (0–60 mph, 1/4 mile), multi-color needles/backlighting depending on model, wiring to cut/splice; housing 4¼", bezel 4⅝".
Quantity
Last items in stock

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Speedometer up to 140 mph, tachometer, odometer, two resettable trip meters and auxiliary indicator lights (turn signals, high beam, neutral, low oil pressure) combined in a stylishly designed unit
  • For '99–'03 models: system offering 7 selectable colors for the needle, backlight and LCD screen (red, green, blue, turquoise, magenta, amber or white)
  • For '11–'22 models: system offering 31 selectable colors for the needle, backlight and LCD display
  • Tachometer up to 8,000 rpm with adjustable shift point and digital readout
  • Service-resettable mileage with alert (configurable countdown) and integrated hour meter
  • 12-hour clock function
  • Battery voltage display with low-voltage alert
  • Supports cylinder head temperature sensor (if the motorcycle is factory-equipped)
  • Oil pressure sending unit sold separately (part no. 2212-0513 or DS-250019)
  • 7-speed gear position indicator, compatible with 3- to 7-speed transmissions
  • Security system indicator
  • Compatible with automatic turn signal cancellation system
  • Preheat / engine check indicator function
  • Allows performance calculations and measurements: 0–60 mph, top speed, peak RPM recall, quarter-mile time and speed
  • Wiring harness requires cutting and splicing; not plug-and-play
  • Case diameter: 4-1/4" ; bezel diameter: 4-5/8"
DAKOTA DIGITAL
22120579
1 Item

Data sheet

Couleur du boîtier
Black
Calibrage
0 km/h - 225 km/h, 0 tr/min - 8 000 tr/min
0 km/h - 225 km/h, 0 tr/min - 8 000 tr/min
0 mph - 140 mph, 0 tr/min - 8 000 tr/min
0 mph - 140 mph, 0 tr/min - 8 000 tr/min
0 tr/min - 8 000 tr/min, 0 km/h - 225 km/h (0 mph - 140 mph)
0 tr/min - 8 000 tr/min, 0 km/h - 225 km/h (0 mph - 140 mph)
Couleur du cadran
Noir, Gris
Diamètre extérieur
11,8 cm (4-5/8")
Marque
DAKOTA DIGITAL
Référence fournisseur
MVX-2011-KG-K
Caractéristiques
Éclairage de fond, 31 couleurs sélectionnables
Modèle
MVX Series
Nom du produit
Indicateur
Type
Compteur de vitesses analogique
Unités
Pièce
