MVX Series Analog Gauge System
search
  • MVX Series Analog Gauge System

MVX Series Analog Gauge System

€714.89
€643.40 Save 10%
Tax included

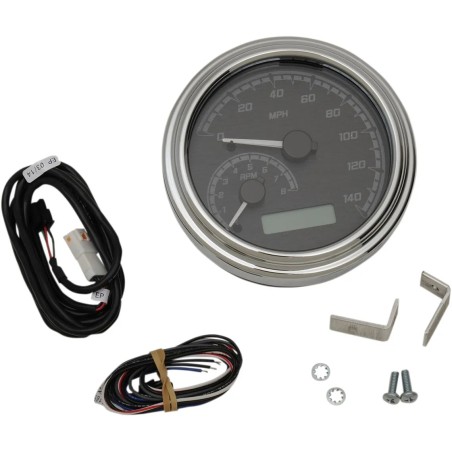

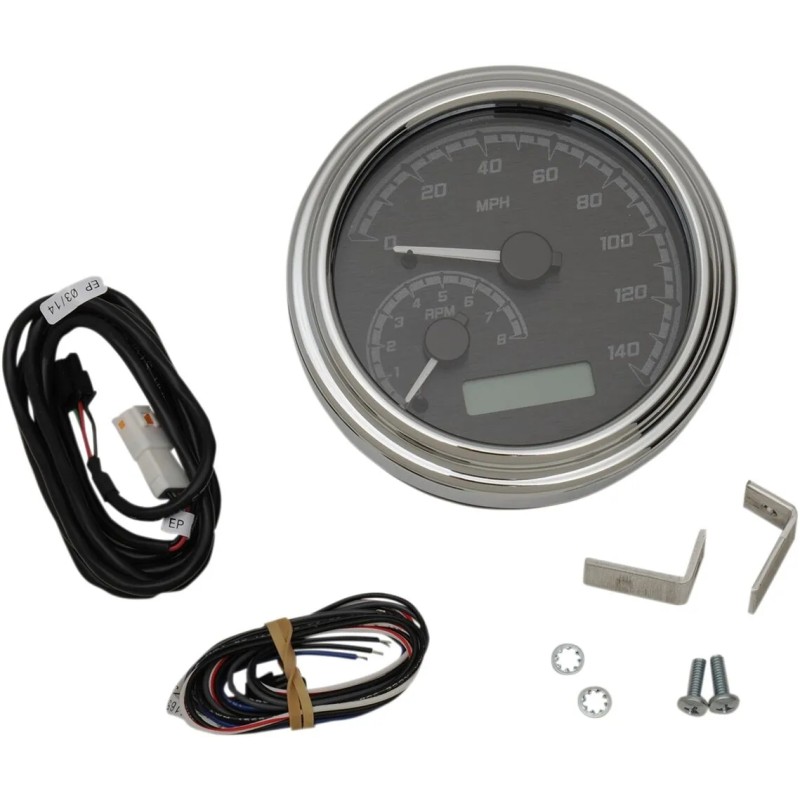

Stylish gauge featuring a 140 mph speedometer, 8,000 rpm tachometer (adjustable redline), odometer, two resettable trip meters, indicator lights (turn signals, headlight, neutral, oil pressure, safety, preheat), voltage/warning, 12-hour clock, service reminder, 3–7 gear indicator and performance calculations. Colors: 7 ('99–'03) or 31 ('11–'22). Cut-and-splice wiring; 4.25" housing. Oil pressure sender sold separately.
Quantity
Last items in stock

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Stylish gauge set featuring a speedometer graduated to 140 mph, a tachometer, an odometer and two resettable trip meters, accompanied by the usual warning lights (turn signals, high beam, neutral, low oil pressure alert).
  • Version for '99-'03 models: choice of 7 colors for the needle, backlighting and LCD — red, green, blue, turquoise, magenta, amber or white.
  • Version for '11-'22 models: selection of 31 colors for the needle, backlighting and LCD display.
  • Tachometer limited to 8,000 rpm, with adjustable shift point and digital rpm readout.
  • Service-resettable mileage function for maintenance, with programmable alert (configurable countdown) and built-in hour meter.
  • Integrated 12-hour clock.
  • Battery voltage display with low-voltage alert.
  • Supports cylinder head temperature sensor if the motorcycle is factory-equipped.
  • Oil pressure sending unit sold separately (part numbers: 2212-0513 or DS-250019).
  • 7-gear position indicator, compatible with 3- to 7-speed transmissions.
  • Security system indicator included.
  • Compatible with self-canceling turn signals.
  • Preheat / engine control indicator present.
  • Performance calculation functions: 0–60 mph, top speed, recall of maximum rpm reached, plus quarter-mile (1/4 mile) time and speed.
  • Installation requires cutting and splicing wires; not compatible as a direct plug-and-play fit.
  • Dimensions: case diameter 4-1/4" and bezel diameter 4-5/8".
DAKOTA DIGITAL
22120578
1 Item

Data sheet

Couleur du boîtier
Chrome
Calibrage
0 km/h - 225 km/h, 0 tr/min - 8 000 tr/min
0 km/h - 225 km/h, 0 tr/min - 8 000 tr/min
0 mph - 140 mph, 0 tr/min - 8 000 tr/min
0 mph - 140 mph, 0 tr/min - 8 000 tr/min
0 tr/min - 8 000 tr/min, 0 km/h - 225 km/h (0 mph - 140 mph)
0 tr/min - 8 000 tr/min, 0 km/h - 225 km/h (0 mph - 140 mph)
Couleur du cadran
Noir, Gris
Diamètre extérieur
11,8 cm (4-5/8")
Marque
DAKOTA DIGITAL
Référence fournisseur
MVX-2011-KG-C
Caractéristiques
Éclairage de fond, 31 couleurs sélectionnables
Modèle
MVX Series
Nom du produit
Indicateur
Type
Compteur de vitesses analogique
Unités
Pièce
