HD-03L Four-Piece LED Gauge Kit
search
  • HD-03L Four-Piece LED Gauge Kit

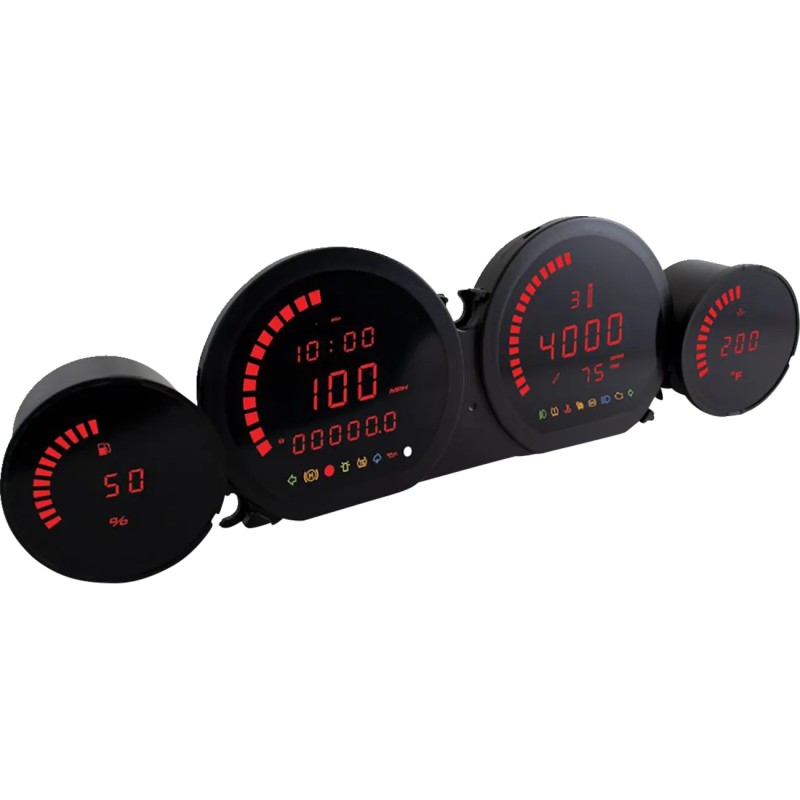

HD-03L Four-Piece LED Gauge Kit

€1,438.71
€1,294.84 Save 10%
Tax included
Plug-and-play display that mounts to the dashboard and connects to the original connectors, with 5 brightness levels. Combines speedometer, tachometer, odometer, voltmeter, air-suspension and gear indicators, trip meters, engine/oil temperatures, fuel gauge and warning lights (oil, engine, ABS, turn signals, etc.). Optional air pressure sensor.
Quantity
Last items in stock

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Plug-and-play: simple and immediate installation
  • Installs directly on the dashboard by replacing the original unit and using the original connectors
  • Adjustable digit brightness with 5 levels (1 = darkest, 5 = brightest)
  • Combines multiple instruments: multifunction speedometer, tachometer, odometer, voltmeter, air suspension indicator, gear position indicator, trip meter, engine temperature, oil temperature, and fuel gauge
  • Indicators included: oil, check engine, general warning, high beam, fog lights, voltage indicator, immobilizer, cruise control, ABS and turn signals
  • Optional air pressure sensor (sold separately) for models equipped with air suspension
  • Tachometer features: display 0 - 9,999 RPM, shift warning light adjustable between 2,000 and 8,000 RPM, maximum RPM adjustable from 0 to 8,000 RPM
  • Speedometer features: display 0 - 199 MPH, records maximum speed (0 - 199 MPH), overspeed alert adjustable between 19 and 199 MPH
  • Odometer and totals: odometer 0 - 999,999 miles, trip meters A/B 0 - 9,999 miles, service mileage reminder adjustable from 300 to 10,000 miles
  • Temperatures: engine temperature display in standard or custom mode, oil temperature gauge from 32°F to 248°F, records maximum oil temperature (32°F - 248°F), effective temperature range 14°F to 140°F
  • Fuel gauge: 6 fill levels (1 level = 16.6%), option to set tank volume (Off / 1 - 9.9 US gallons), display for average fuel consumption (Off / MPG) and estimated remaining range (0 - 6,249 miles)
  • Voltmeter: DC range 8V - 18V, effective operating voltage DC 12V
  • Alerts and parameter logging: records relevant maximum values (speed, oil temperature, etc.) and configurable alerts for safety and maintenance
  • User-friendly interface: settings accessible and adjustable from the display
  • Design compatible with original connectors for discreet dashboard integration
  • Maintenance and tracking functions: trip totals, service alerts and maximum-value history for accurate vehicle monitoring
  • Note for CVO models: the power switch must be in the ON position to modify settings on the display
KOSO NORTH AMERICA
22100665
1 Item

Data sheet

Width
9,5 cm (3-3/4"), 6,9 cm (2-3/4")
9,5 cm (3-3/4"), 6,9 cm (2-3/4")
Depth
51 mm (2"), 44,45 mm (1-3/4")
51 mm (2"), 44,45 mm (1-3/4")
Couleur du boîtier
Black
Couleur de l'affichage
Red
Couleur du cadran
Black
Style
Électronique
Longueur
70 mm (2-3/4"), 27 cm (10-5/8")
70 mm (2-3/4"), 27 cm (10-5/8")
Marque
KOSO NORTH AMERICA
Référence fournisseur
BA064921
Modèle
HD-03L
HD-03L
Nom du produit
Kit indicateur
Type
Multi-Function
Unités
Kit
