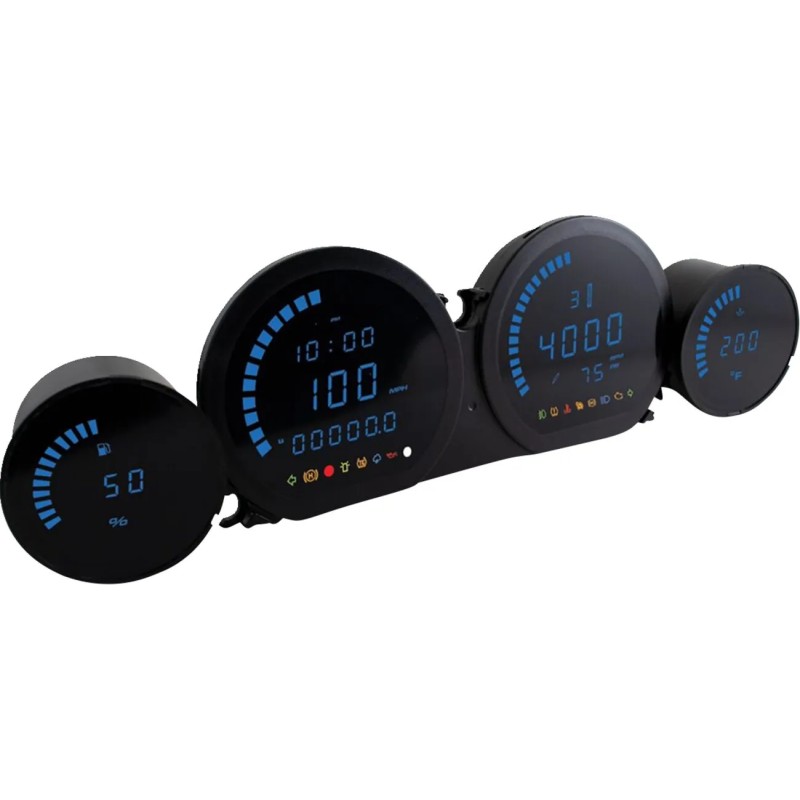

HD-03L Four-Piece LED Gauge Kit
search
  • HD-03L Four-Piece LED Gauge Kit
  • HD-03L Four-Piece LED Gauge Kit

HD-03L Four-Piece LED Gauge Kit

€1,438.71
€1,294.84 Save 10%
Tax included
Plug-and-play instrument that mounts to the dashboard and connects to the original connectors, with 5 brightness levels. Multifunction: speed, tachometer, odometer, voltmeter, air suspension indicator, gear indicator, trip meter, engine/oil temperatures, fuel gauge and warning lights (oil, engine, high beam, fog light, voltage, immobilizer, cruise control, ABS, turn signals). Optional air pressure sensor.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • Plug-and-play installation
  • Directly mounts to the dashboard and connects to the factory connectors
  • Adjustable digit brightness levels: from 1 (darkest) to 5 (brightest)
  • Combines a multifunction speedometer, tachometer, odometer, voltmeter, air suspension indicator, gear indicator, trip meter, engine temperature gauge, oil temperature gauge and fuel gauge
  • Built-in indicator lights: oil, check engine, warning, high beam, fog light, voltage, anti-theft, cruise control, ABS and turn signals
  • Optional air pressure sensor for models equipped with air suspension (sold separately)
  • Technical specifications:
  • Tachometer: range 0 - 9,999 RPM, adjustable shift indicator between 2,000 and 8,000 RPM, adjustable maximum RPM 0 - 8,000 RPM
  • Speedometer: display 0 - 199 MPH, max speed recording 0 - 199 MPH, overspeed alert adjustable from 19 to 199 MPH
  • Odometer: total 0 - 999,999 miles, trip meters A/B 0 - 9,999 miles, service reminder adjustable from 300 to 10,000 miles
  • Temperature: engine temperature display (Standard/Custom modes), oil temperature indicator 32° F - 248° F, maximum oil temperature recording 32° F - 248° F, effective temperature range 14° F - 140° F
  • Fuel gauge: 6 levels (1 level = 16.6%), tank volume setting (Off / 1 - 9.9 US gallons), average consumption display (Off / MPG), remaining range 0 - 6,249 miles
  • Voltmeter: DC measurement 8V - 18V, nominal effective voltage DC 12V
  • Note for CVO models: the ON/OFF switch must be in the ON position to modify display settings
KOSO NORTH AMERICA
22100664
4 Items

Data sheet

Width
9,5 cm (3-3/4"), 6,9 cm (2-3/4")
Depth
51 mm (2"), 44,45 mm (1-3/4")
Couleur du boîtier
Black
Couleur de l'affichage
Blue
Couleur du cadran
Black
Style
Électronique
Longueur
70 mm (2-3/4"), 27 cm (10-5/8")
Marque
KOSO NORTH AMERICA
Référence fournisseur
BA064911
Modèle
HD-03L
Nom du produit
Kit indicateur
Type
Multi-Function
Unités
Kit
