1-1 4 Viking Handlebar
search
  • 1-1 4 Viking Handlebar

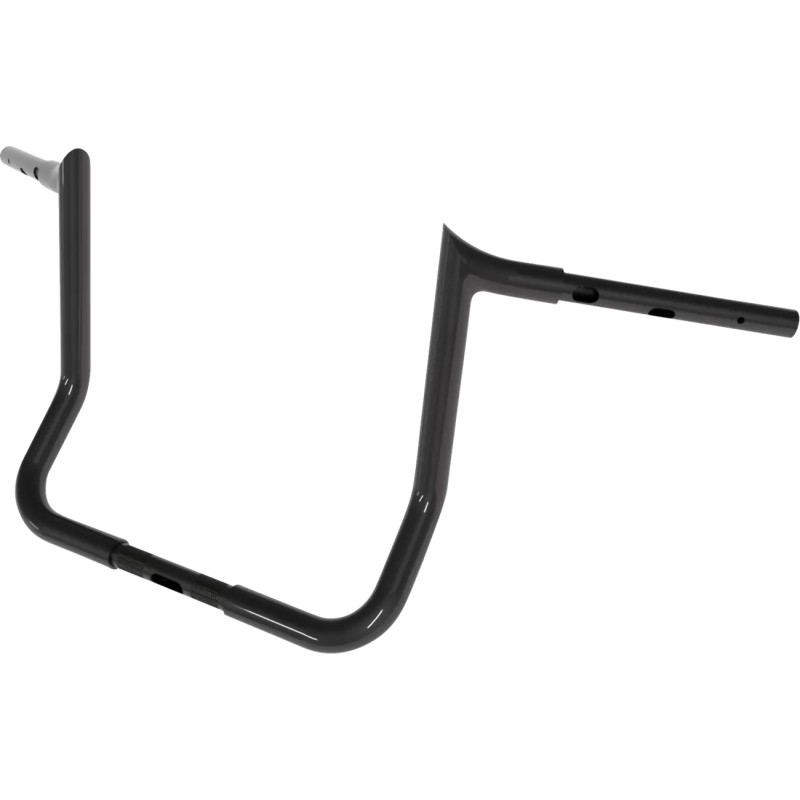

1-1/4" Viking Handlebar

€587.69
€528.92 Save 10%
Tax included
Viking handlebar with a patented internal design that facilitates installation of the complete wiring harness (vinyl sleeve, connectors, heat‑shrink tubing) without chafing. Flared inner radius and pre‑installed E‑Z pull‑thru sleeve for easy routing. CNC bends, machined mounts, burr‑free passages, glossy finish. Diameter 1‑1/4", center 1". Not compatible with OEM risers/instruments for 883C/1200C.
Quantity
Last items in stock

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • The handlebar incorporates a patented internal design that greatly simplifies installation of the entire wiring harness.
  • This innovative design provides enough space to easily accommodate the complete harness with its original vinyl sheath, connectors, and heat-shrink tubing, without rubbing and without compromising the visor's clean lines.
  • A specific flaring process creates a burr-free internal radius that provides an extra clearance pocket at the handlebar's critical point.
  • To further simplify wiring installation, Magnum handlebars are shipped pre-assembled with an E-Z pull-thru braided plastic sleeve.
  • Simply insert the harness into the sleeve and pull: the operation is quick and easy.
  • High-quality design and construction: smooth, perfectly round CNC bends; machined control mounts (not crushed); burr-free internal cable passages; notches for electronic throttle; and high-gloss finishes for an unmatched aesthetic result.
  • Outside diameter of 1-1/4", 1" center section, knurling located 3-1/2" on center; compatible with standard controls, including hydraulic clutches.
  • Not compatible with original risers or handlebar/instrument mounts on 883C and 1200C models.
  • Viking handlebars with a 1" center section are compatible with 1" risers.
  • Models originally equipped with handlebars larger than 1" require risers with a 1" inside diameter (ID).
MAGNUM SHIELDING
06017029
2 Items

Data sheet

Width
92 cm (36-1/4")
Diamètre de serrage
25,4 mm (1")
Diamètre des commandes
25,4 mm (1")
Diamètre du guidon
32 mm (1-1/4")
Écartement central
30,5 cm (12")
Renvoi/Retour
25,5 cm (10")
Type/Galbe
Viking, Ape Hanger
Largeur de serrage
88,9 mm (3-1/2")
Height
30,5 cm (12")
Finition
Brillant
Marque
MAGNUM SHIELDING
Référence fournisseur
4HB-2412
Caractéristiques
Capteur Throttle-By-Wire dans le boîtier de commande, Partie centrale moletée, Pré-percé, Pour embrayage hydraulique
Couleur de base
Black
Couleur/finition
Noir, Brillant
Nom du produit
Guidon
Unités
Pièce
Matière
Acier
