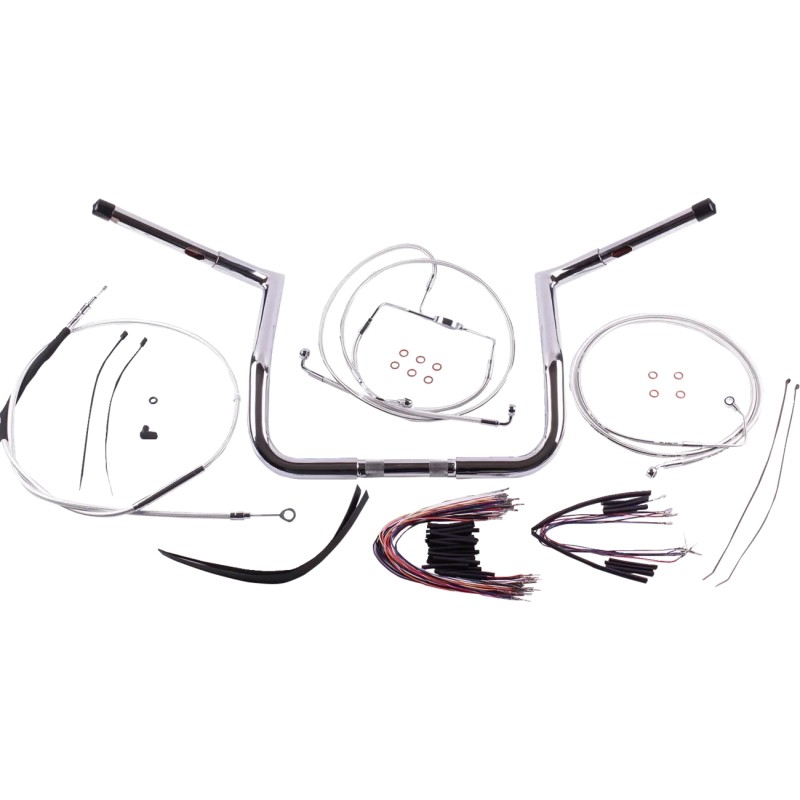

1-1/4" Viking Handlebar Installation Kit

€1,255.10
Tax included
Complete Magnum Viking 1-1/4" handlebar kit with braided cables and lines. Patented internal design and deburred routing passages for easy wiring/harness routing, E‑Z pull‑thru sleeve, CNC-bent, 1" center section and 3-1/2" knurled area. Compatible with standard controls (hydraulic clutch). Includes cables, lines and hardware; assembled in the USA.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • The only complete handlebar kits offered with matching braided cables and lines, including 1-1/4" Magnum Viking handlebars
  • The Viking handlebar features a patented internal design that allows the entire electrical harness to be easily installed without compromising the bar's clean appearance
  • Ingenious engineering provides ample space to easily route the entire harness, including its original vinyl sheath, terminal connections and their heat-shrink tubing, with no risk of abrasion
  • Unique flaring technique creates a burr-free inner radius and a generous relief pocket in the sensitive area of the bar to protect the cables
  • To simplify running electrical cables, Magnum bars come pre-fitted with an E-Z pull-thru braided plastic sleeve: simply insert the harness and pull
  • Aggressive styling and premium construction of Viking bars, compatible with stock controls including hydraulic clutches
  • Each 1-1/4" bar is CNC-bent for precise fit; it features optimized wrist angles for comfort, a 1" center section, a 3-1/2" center knurl, machined (not stamped) control mounts, and burr-free internal cable routing with slots provided for electronic controls
  • Kits include: Magnum Viking handlebars, throttle and idle cables or Throttle-By-Wire extensions, clutch cable or hydraulic line, brake lines, copper sealing washers, hardware and all necessary extensions for switches or turn signals
  • All cables are engineered to reduce effort and maximize efficiency, meeting or exceeding original equipment (OE) specifications for fit, construction and durability
  • Assembled in the USA
  • Cable and housing lengths are calculated based on 2" risers, except on touring models
  • Viking Bagger and Ape Hanger bars have a 1" center section and fit 1" risers; on stock models equipped with larger-than-1" top clamps, the risers will need to be replaced with versions having a 1" inside diameter
MAGNUM SHIELDING
06014407
4 Items

Data sheet

Width
82 cm (32-1/4")
Diamètre de serrage
25,4 mm (1")
Diamètre des commandes
25,4 mm (1")
Diamètre du guidon
32 mm (1-1/4")
Écartement central
30,5 cm (12")
Renvoi/Retour
26,5 cm (10-1/2")
Type/Galbe
Viking, Bagger
Largeur de serrage
88,9 mm (3-1/2")
Height
30,5 cm (12")
Finition
Chrome
Style
Universel
Marque
MAGNUM SHIELDING
Référence fournisseur
38831-412
Caractéristiques
Partie centrale moletée, Pré-percé, Pour embrayage hydraulique, Pour modèles ABS
Couleur de base
Argent
Couleur/finition
Chrome
Nom du produit
Guidon
Unités
Kit
Matière
Acier
