Wego III Wide-Band AFR (Air Fuel Ratio) Monitoring System
search
  • Wego III Wide-Band AFR (Air Fuel Ratio) Monitoring System

Wego III Wide-Band AFR (Air/Fuel Ratio) Monitoring System

€760.56
Tax included
WEGO III kit including a wideband interface, 42″ wiring harness, Bosch LSU 4.2 5‑wire sensor, 18×1.5 mm weld nut, and Windows software (ME/XP/Vista). Records AFR and RPM (>2 hours) with Excel export; 0–5 V analog input/output. Power 11–16 V (~1 A). Blue waterproof auto‑dimming LED display, free‑air calibration, ±0.10 AFR accuracy; compact, made in the USA.
Quantity
Last items in stock

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

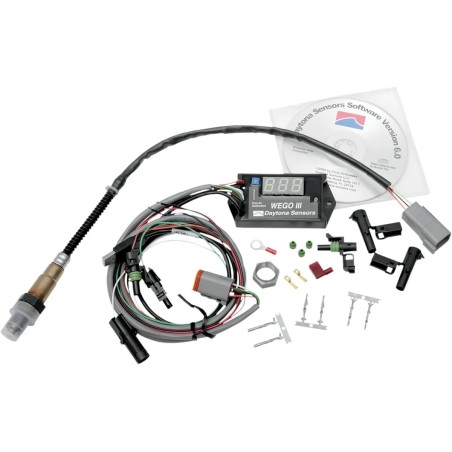

  • Sold as a complete kit: WEGO III wideband sensor interface, 42" (approximately 1067 mm) wiring harness, Bosch LSU 4.2 five-wire wideband oxygen sensor, 18 x 1.5 mm weld nut for exhaust manifold mounting, and software provided on CD-ROM.
  • WEGO III data logging software compatible with Windows ME / XP / Vista; the program allows recording and displaying engine RPM, AFR (air/fuel ratio) and an analog sensor with user-defined scales.
  • Ability to export recordings to Excel for in-depth analysis of logs and charts.
  • Real-time display of air/fuel ratio; recording of over two hours of data including AFR and engine RPM for extended diagnostics or full testing.
  • Additional 0–5 V analog input for sensors such as throttle position (TPS) or manifold absolute pressure (MAP), to correlate AFR with engine signals.
  • Wide power supply range of 11 to 16 V, suitable for battery power on small engines or race vehicles without an alternator; consumption approximately 1 amp.
  • Super-bright blue LED display, readable in direct sunlight with automatic dimming for comfortable reading in low light.
  • Usable both on the test bench and on the road; compatible with motorcycles and other small-engine applications, offering versatility for testing and tuning.
  • High accuracy: error less than ±0.10 AFR in the 10.3–19.5 AFR range, for reliable fuel tuning measurements.
  • "Free-air" calibration procedure that compensates for sensor wear and maintains accuracy over time.
  • Air/fuel mixture indicator system with integrated data logging, facilitating tracking and historical records of engine performance.
  • AFR analog output 0–5 V allowing direct interface with test bench (dyno) instrumentation or other data acquisition equipment.
  • Compact size: 10.1 cm length x 5 cm width x 1.2 cm height (4" x 2" x 0.5"), easy to install and integrate into existing setups.
  • Product made in the United States, ensuring design and manufacturing in accordance with American manufacturing standards.
DAYTONA TWIN TEC LLC
10220054
1 Item

Data sheet

Style
Canal unique
Marque
DAYTONA TWIN TEC LLC
Référence fournisseur
112001
Caractéristiques
Capteur 18 mm
Couleur/finition
Noir, Gris
Modèle
WEGO III
Nom du produit
Kit capteurs
Type
Sonde lambda à large bande
Unités
Kit
