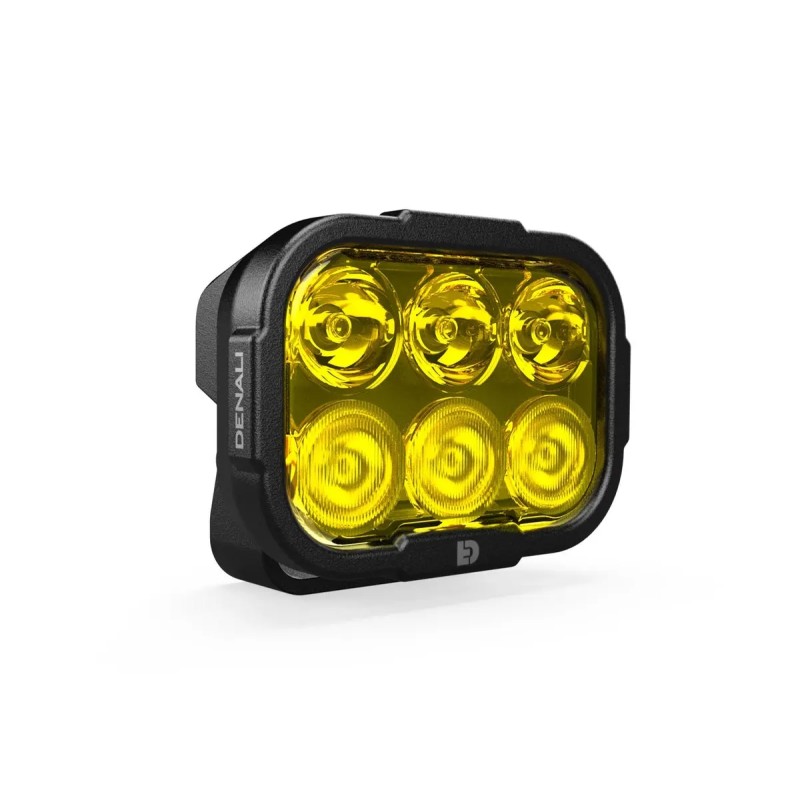

DL6 Hybrid Driving

€172.22
Tax included
Non-interchangeable lenses, high-output HiDrive LED pod (Cree XPL HI 8W) — 48 W per unit / 96 W per pair, 10,200 lm per pair, oversized TIR optics for a long-range hybrid beam (up to 406 m), DrySeal sealed lens, 3-wire DataDim plug-and-play, 4 mm steel mounts, UV-resistant polycarbonate lenses, 21 grms vibration rating.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • DL series optics are not interchangeable.
  • HiDrive LEDs — 10,200 lumens per pair: high-end 8 W Cree LEDs each, housed in a 9-LED square enclosure for an extremely powerful beam.
  • Oversized TIR optics — Optimized hybrid road beam: our exclusive TIR optics distribute light more efficiently than conventional reflectors, delivering greater beam distance and width in an ultra-compact form factor.
  • DataDim™ Dimmable Plug-&-Play — 3-wire dedicated design for maximum reliability and plug-&-play connection with all DENALI beams, DialDim and CANsmart controllers.
  • DrySeal™ Sealed Beam Construction — Patented robotic lens sealing process combined with internal potting at the cable entry to ensure complete watertightness, even when connectors are unplugged.
  • Oversized yet economical construction — 4 mm powder-coated steel mounts and a rugged heat sink for 21 grms vibration resistance; polycarbonate lenses protected by a hardened UV-resistant coating.
  • Specifications (Unit | Pair):
  • LEDs: Cree XPL HI (8 W each)
  • Power: 48 W | 96 W
  • Current: 4 A | 8 A
  • Raw lumens: 5,100 | 10,200
  • Beam range: 1,000 ft (305 m) | 1,330 ft (406 m)
  • Beam width: 203 ft (62 m) | 270 ft (82 m)
  • Connector: DataDim-compatible 3-pin DT
  • Operating voltage: 9–32 VDC
  • Pod dimensions: 3" x 4.5" (rectangular) x 2" deep
DENALI
20013001
15 Items

Data sheet

Couleur de l'éclairage/de l'ampoule
Yellow
watts
48 W
Couleur du verre
Yellow
Couleur de la moulure de finition
Black
Luminosité
5.100 lm
Température de la lumière
6 000 K
Marque
DENALI
Référence fournisseur
DNL.DL6.050.Y
Nom du produit
Module d'éclairage hybride
Type
Feu de gabarit
Unités
Pièce
