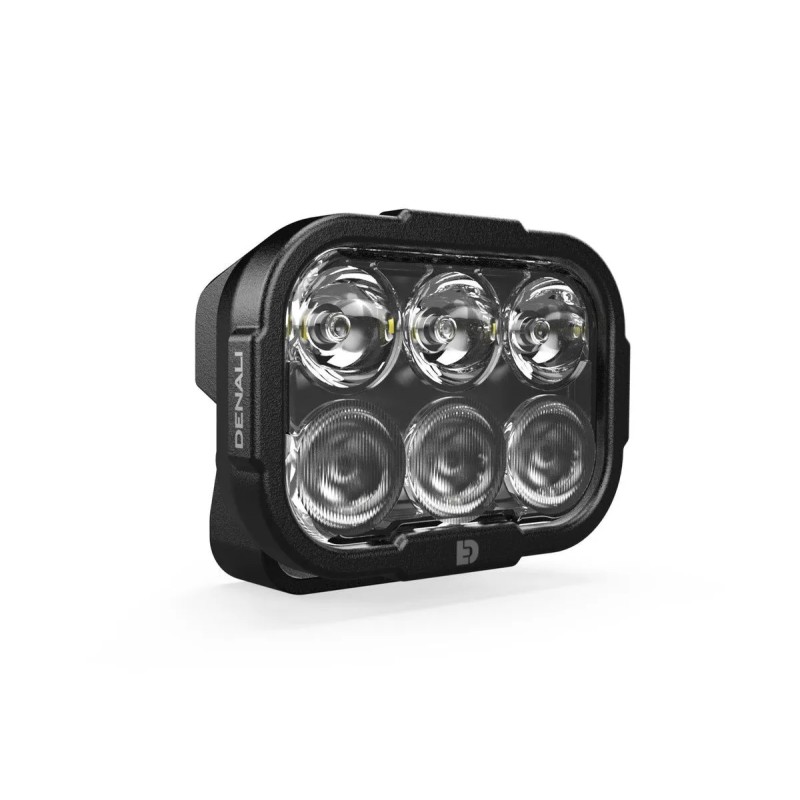

DL6 Hybrid Driving

€172.22
Tax included
The lenses in the DL series are not interchangeable. HiDrive CREE XPL HI (8 W) delivers 10,200 lm per pair in a compact housing with hybrid TIR optics for a long-range driving beam (up to 406 m). DataDim 3‑wire plug-and-play, waterproof DrySeal construction, steel mounts and UV‑resistant polycarbonate lens, 9–32 V.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • DL series lenses are not interchangeable.
  • HiDrive LEDs — 10,200 lumens per pair: High-end CREE XPL HI LEDs (8 W each), arranged in a 9-LED housing delivering a powerful beam.
  • Oversized TIR optics — Optimized hybrid road beam: our exclusive TIR optics distribute light more efficiently than traditional reflectors, delivering an exceptional road beam in both range and width while remaining in an ultra-compact housing.
  • DataDim™ Dimmable Plug-&-Play — Dedicated 3-wire design for maximum reliability and plug-and-play compatibility with all DENALI and DialDim beams and CANsmart controllers.
  • DrySeal™ Sealed Beam Construction — Patented process robotically seals the lens and uses internal potting at the cable entry to ensure complete waterproofing, even when connectors are removed.
  • Oversized but affordable — 4 mm powder-coated steel brackets and a rugged heatsink for excellent vibration resistance (21 grms). Polycarbonate lenses reinforced with a hardened UV-resistant coating.
  • Specifications (Single | Pair):
  • LEDs: CREE XPL HI (8 W each)
  • Power: 48 W | 96 W
  • Current: 4 A | 8 A
  • Raw lumens: 5,100 | 10,200
  • Beam range: 1000' (305 m) | 1330' (406 m)
  • Beam width: 203' (62 m) | 270' (82 m)
  • Connector: DataDim-compatible 3-wire DT
  • Operating voltage: 9–32 VDC
  • Pod dimensions: 3" x 4.5" (rectangular) x 2" deep
DENALI
20013000
15 Items

Data sheet

Couleur de l'éclairage/de l'ampoule
White
watts
48 W
Couleur du verre
Transparent
Couleur de la moulure de finition
Black
Luminosité
5.100 lm
Température de la lumière
6 000 K
Marque
DENALI
Référence fournisseur
DNL.DL6.050.W
Nom du produit
Module d'éclairage hybride
Type
Feu de gabarit
Unités
Pièce
