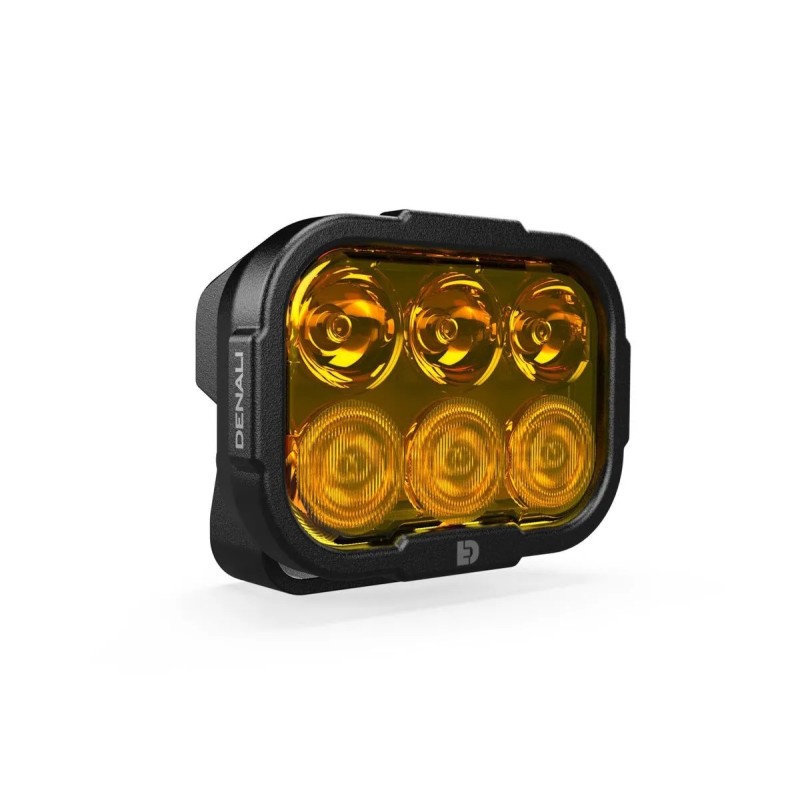

DL6 Hybrid Driving

€172.22
Tax included
DL-series non-interchangeable lenses delivering 10,200 lm per pair (CREE XPL HI 8W LEDs), oversized TIR optics for a long-range hybrid road beam, DataDim™ 3‑wire dimmable plug-and-play, DrySeal™ waterproof construction, steel brackets and UV-resistant polycarbonate lenses.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • DL-series lenses are not interchangeable.
  • HiDrive LEDs — 10,200 lumens per pair: premium Cree LEDs (8 W each) integrated into a 9-LED square housing for a very powerful beam.
  • Oversized TIR optics — Optimized hybrid driving beam: our exclusive TIR optics distribute light more efficiently than conventional reflectors, delivering an exceptional driving beam in range and width while maintaining an ultra-compact housing.
  • DataDim™ Dimmable Plug-&-Play — Dedicated 3-wire architecture providing maximum reliability and a plug-&-play connection compatible with all DENALI harnesses, DialDim and CANsmart controllers.
  • DrySeal™ Sealed Beam Construction — Patented robotic lens-sealing process and internal potting at the cable entry to ensure complete waterproofing, even when connectors are unplugged.
  • Rugged, economical design — 4 mm powder-coated steel mounts and a massive heatsink providing vibration resistance up to 21 grms. Polycarbonate lenses protected by a hardened UV-resistant coating.
  • Specifications (Unit | Pair):
  • LEDs: Cree XPL HI (8 W each)
  • Power: 48 W | 96 W
  • Current draw: 4 A | 8 A
  • Raw lumens: 5,100 | 10,200
  • Beam range: 1000' (305 m) | 1330' (406 m)
  • Beam width: 203' (62 m) | 270' (82 m)
  • Connector: DataDim-compatible 3-pin DT
  • Operating voltage: 9–32 VDC
  • Pod dimensions: 3" x 4.5" (rectangular) x 2" depth
DENALI
20012999
15 Items

Data sheet

Couleur de l'éclairage/de l'ampoule
Ambre
watts
48 W
Couleur du verre
Ambre
Couleur de la moulure de finition
Black
Luminosité
5.100 lm
Température de la lumière
6 000 K
Marque
DENALI
Référence fournisseur
DNL.DL6.050.A
Nom du produit
Module d'éclairage hybride
Type
Feu de gabarit
Unités
Pièce
