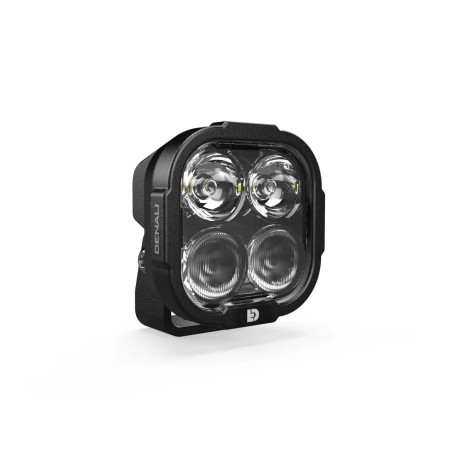

DL4 Hybrid Driving

€125.25
Tax included
HiDrive LED headlamp, 6,800 lm per pair (Cree XPL HI 8W/LED), high-performance ECE-certified hybrid TIR beam, 3‑wire DataDim plug-and-play connector, fully waterproof DrySeal construction, impact‑resistant chassis and heatsink, 6000K, compact 3" × 3" × 2".
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • HiDrive LEDs 6 — 6,800 lumens per pair: High-performance CREE XPL HI LEDs, 8 W each, housed in a square pod containing 9 LEDs for a powerful beam.
  • Oversized TIR optics — Optimized hybrid road beam: our exclusive TIR optics distribute light more efficiently than traditional reflectors, delivering greater beam distance and width while remaining in a compact housing.
  • DataDim™ Plug-&-Play Dimming — 3-wire design with dedicated dimming wiring for maximum reliability and plug-&-play connection with all DENALI beams, DialDim controllers and CANsmart.
  • DrySeal™ Sealed Beam Construction — Patented robotic lens sealing process and internal overmolding at the cable entry ensure complete watertightness, even without external connectors.
  • Overbuilt but affordable — 4 mm powder-coated steel mounts and a robust heatsink designed to withstand vibrations up to 21 grms; reinforced polycarbonate lenses with UV-resistant coating for increased longevity.
  • ECE-compliant road beam — The hybrid beam is ECE certified for legal on-road use as a primary or auxiliary driving light within the European Union. Yellow or amber lenses are not approved for use as driving beams.
  • Specifications (Single | Pair):
  • LED: CREE XPL HI (8 W each)
  • Power: 32 W | 64 W
  • Current draw: 2.7 A | 5.4 A
  • Raw lumens: 3,400 lm | 6,800 lm
  • Beam distance: 820' (250 m) | 1,091' (333 m)
  • Beam width: 157' (48 m) | 209' (64 m)
  • Connector: DataDim-compatible 3-pin DT
  • Color temperature: 6,000 K
  • Operating voltage: 9–32 VDC
  • Pod dimensions: 3" x 3" square x 2" deep
DENALI
20012997
10 Items

Data sheet

Couleur de l'éclairage/de l'ampoule
White
watts
32 W
Couleur du verre
Transparent
Luminosité
3.400 lm
Température de la lumière
6 000 K
Marque
DENALI
Référence fournisseur
DNL.DL4.050.W
Nom du produit
Module d'éclairage hybride
Type
Feu de gabarit
Unités
Pièce
