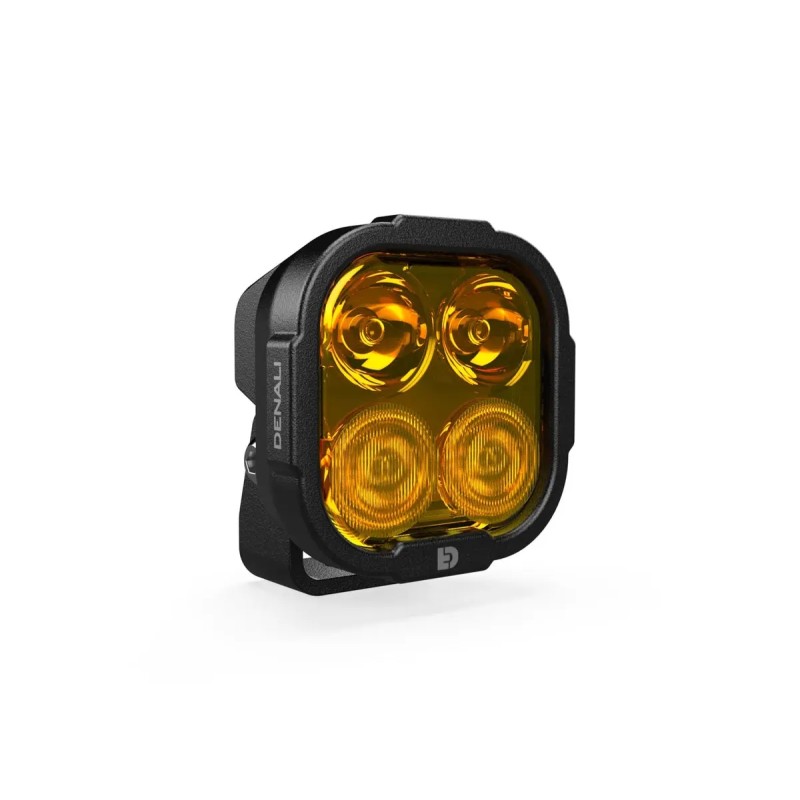

DL4 Hybrid Driving

€125.25
Tax included
HiDrive LED 3" x 3": 6,800 lm per pair (Cree XPL HI, 8W per LED), oversized TIR optics for a long-range hybrid beam, DataDim™ 3-wire plug-and-play, DrySeal™ fully waterproof, rugged vibration-resistant heatsink and mounts, ECE-certified road beam, 6000K, 9–32 V.
Quantity

  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  • HiDrive LEDs — 6,800 lumens per pair: premium CREE LEDs (Cree XPL HI) 8 W each, arranged in a 9-LED square housing for a very powerful beam.
  • Oversized TIR optics — Optimized hybrid driving beam: our exclusive TIR optics distribute light more efficiently than traditional reflectors, delivering exceptional beam distance and width while remaining in a compact form factor.
  • DataDim™ Plug-&-Play Dimming — 3-wire design with a dedicated dimming circuit for maximum reliability and simple plug-and-play connection to DENALI beams, DialDim controllers, and CANsmart.
  • DrySeal™ Sealed Beam Construction — Patented robotic lens sealing and internal overmolding at the cable entry ensure a fully watertight seal, even without external connectors.
  • Oversized yet cost-effective construction — 4 mm powder-coated steel brackets and a robust heatsink provide excellent vibration resistance (21 grms); reinforced polycarbonate lenses with UV-resistant coating for increased longevity.
  • ECE-compliant driving beam — The hybrid beam is ECE-certified for legal on-road use as a primary or auxiliary driving light in the European Union. Note: yellow and amber lenses are not approved for legal use as driving beams.
  • Specifications (Single | Pair):
  • LED: Cree XPL HI (8 W each)
  • Power: 32 W | 64 W
  • Current draw: 2.7 A | 5.4 A
  • Raw lumens: 3,400 lm | 6,800 lm
  • Beam distance: 820' (250 m) | 1,091' (333 m)
  • Beam width: 157' (48 m) | 209' (64 m)
  • Connector: DataDim-compatible 3-pin DT
  • Color temperature: 6,000 K
  • Operating voltage: 9–32 V DC
  • Pod dimensions: 3" x 3" (square) x 2" deep
DENALI
20012996
5 Items

Data sheet

Couleur de l'éclairage/de l'ampoule
Ambre
watts
32 W
Couleur du verre
Ambre
Luminosité
3.400 lm
Température de la lumière
6 000 K
Marque
DENALI
Référence fournisseur
DNL.DL4.050.A
Nom du produit
Module d'éclairage hybride
Type
Feu de gabarit
Unités
Pièce
